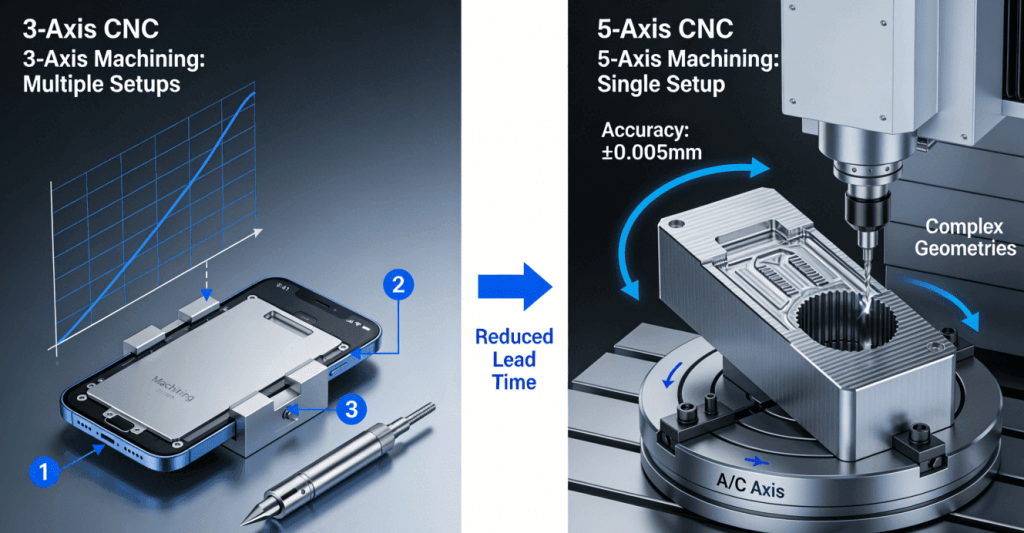

Visualizing the key advantages of 5-axis CNC machining: reduced setups, ability to create complex contours, and high-precision fabrication for consumer electronics.

Introduction

The consumer electronics sector, including smartphones and wearable technology, is now being challenged by ever more sophisticated component requirements, such as very thin cases and strong internal frames. Typical 3-axis machining translates to multiple positioning, total error accumulation, and longer processing times, possibly resulting in hidden costs of up to 20%. The primary challenges come into play when dealing with geometric complexity, material mix, including titanium alloy components in high-end products, and shorter time-to-market cycles, all of which require increased accuracy and faster processing, not readily available in a lack of professional 5-axis machine knowledge.

This paper offers a detailed discussion on overcoming challenges with 5-axis CNC machining technology and will reference authoritative standards to ensure accuracy. The following discussion will go on to provide key points on advantages, materials that can be processed with 5-axis machines, and examples that can be learned from within 5-axis machining technology.

What Are the Basic Benefits of 5-Axis Machining in the Production of Consumer Electronics?

5. axis CNC machines offer basic benefits over traditional 3-axis machining, mainly because they offer a tremendous reduction in required setup times. Although they provide the flexibility to move the machine along five axes, they enable finished complex components to be accomplished within a single clamping, reducing the average number of required setups from five to one only. This process further reduces accumulated errors, resulting in enhanced overall dimensions, with a precision level of ±0.005mm. The need to manage such precision is emphasized by the fact that there are specifications such as ASME Y14.5, meant to cover the guidelines on dimensioning and tolerancing.

The efficiency improvements are significant, which may translate to the shortening of lead times by up to 30%. This assumes much importance in the fast-moving segments such as the smartphone industry, where the quick prototyping of aluminum housing for the likes of the iPhone may be achieved without having to incur the cost of changes. To look into the details of the principles behind such technology, the reader may refer to this extensive guide to 5-axis machining. The fusion of the Precision Manufacturing principles and the latest CNC Technology has made 5 Axis Machining Services an essential part of the consumer electronics space.

Titanium Machining by 5 Axes: In What Way Does It Improve the Longevity and Performance Characteristics?

Example of 5-axis machining a high-strength titanium alloy component commonly found in premium consumer electronics, demonstrating precision for intricate features.

The application of titanium alloys in such high-end consumer electronics as the mid-frame of smartphones can be considered as a result of the exceptional strength-to-weight ratio and corrosion resistance. However, the low thermal conductivity and high strength level of the material make it very difficult to work using conventional machining operations.

Overcoming Material Challenges with Advanced Technology

• High-Speed Machining and Cooling:

  The difficulties faced by machining are avoided by 5-axis machining by using advanced strategies. High-speed machining is also incorporated in 5-axis machining in order to provide optimal chip loading and prevent heating. In addition, high-speed cooling is also incorporated in 5-axis machining in order to provide good control of cutting temperature in 5-axis machining. This is important in high-speed machining since it ensures that there is a reduction in tool wear and that there is a prolongation of titanium lifespan by up to 20%.

• Enhancing Structural Integrity:

  The ability to produce complex shapes in a single piece of titanium through 5-axis CNC machining makes it possible to produce these parts in a monolithic structure. A join or a weld could potentially introduce a weak point. However, this particular component has the benefit of a structural integrity which has been improved as a result of the production process.

The whole process is strengthened by the quality management systems ISO 9001 and others that guarantee quality from material procurement to the final inspection of the product. ISO 9001 and AS9100D certifications are an honest assurance of the commitment of the manufacturer in the aspect of quality assurance that the components manufactured meet the demanding criteria of High-Quality Production. The above makes the titanium 5-axis machining an important enabler of Advanced Materials Engineering in the high-end electronic industry.

H3: Streamline Manufacturing of Complex Assemblies

The fact that 5-axis machining requires a single setup operation can greatly benefit complex electronic assemblies. The presence of undercuts in the design of typical internal brackets, as well as their cases, usually involves angles that are difficult to produce in 3-axis machining systems. The ability to continuously perform 5-axis machining operations will allow such shapes to be created in one piece, thereby reducing assembly mistakes.

What Is the Significance of Continuous 5-Axis Machining in the Streamlining of Aerospace-Grade Parts for

5-Axis machining has an integral role in applying aerospace quality and machining speed to consumer product parts. Its application is critical in creating complex parts in drones or internal parts in products such as tablets, which are required to be both lightweight and strong.

H3: Unparalleled Efficiency for Complex Geometries

The first and foremost function offered by continuous 5-axis machining is the ability to create very complex shapes in a single, continuous machining pass. With continuous 5-axis machining, the machining cutter can stay in constant contact with the workpiece, positioning it optimally, thereby doing away with the requirement for repositioning, thus saving up to 40% machining time compared to traditional machining.

Direct Benefits for Electronics Manufacturing

• Lightweighting and Performance:

  It performs exceptionally in making organic shapes and thin-walled components. This has immediate applications in consumer electronics because making devices such as laptops more agile through weight reduction has always been a priority for manufacturers. It can machine high-performance alloys, which are typically found in aerospace applications, ensuring such components are robust for intensive use.

• Precision for Miniaturization:

With increasing miniaturization in consumer electronics, the components inside these devices are also miniaturized and packed densely. Continuous 5-axis machining is equipped with sufficient precision to create these minute features with a tolerance of ±0.005mm to fit perfectly and work properly in miniaturized devices.

The validity of this procedure can be verified by strict standards from bodies such as the International Aerospace Quality Group (IAQG), which recognizes the significance of controlling processes. The use of continuous 5-axis machining to create 5-axis aerospace components illustrates its usability in “Complex Part Fabrication” in the electronics industry.

In what Ways Can High-Speed 5-Axis Machining Be Utilized To Reduce

High-speed 5-axis machining has remained an integral part of Innovative Prototyping, and it has greatly enhanced the speed of the product development cycle for consumer electronics products. With the help of advanced tool path programming and fast rotations, it has become possible to cut down the processing time of functional prototypes to a great extent. For example, two weeks of processing can be reduced to merely three days.

The savings resulting from reduced cost, potential to the tune of 25%, are ensured by a number of factors. The optimised tool path prevents unnecessary tool motion, hence cutting down the total machining time. The precision and single-operation nature further reduce material scrap and negate the need to pay labor resources to undertake machine operations multiple times. The cost-effectiveness offered by the technology, therefore, applies to prototyping as well as small-scale production. Smarter manufacturing practices, a domain under research to support innovation, are focused on efficiency and integration through digitalization.

For instance, in developing a smartwatch case or an internal sensor bracket in a smartwatch, high-speed 5-axis machining makes it possible to test quickly form, fit, and function using production materials in designing and developing such parts before considering mass production. This reduces the time involved in Engineering Innovation and makes it safe to move to mass production.

What Are the Critical Considerations for 5-Axis Medical Device Machining in Consumer Health Tech?

The blurring of the lines between consumer health technology and medical devices in areas such as wearable sensors requires a set of critical needs which 5-axis machining is uniquely positioned to fulfill. The issue of biocompatibility represents a major factor in this context. Any materials used in making components coming into direct contact with the skin or in the components used in the making of medical devices must be approved as non-reactive.

Moreover, these parts may have miniature geometries that require high precision. 5-axis medical device machining provides the necessary precision to meet the requirements of medical device parts. The whole manufacturing process has to comply with the high quality standard, ISO 13485, regarding the manufacturing of medical devices. This standard includes all stages from design control to the manufacturing stage and post-manufacturing surveillance. This ascertains that the final product not only provides high precision but also provides safety and reliability for the health care application, following the concepts of Precision Manufacturing and High-Quality Production.

How Do Industry Certifications Such As ISO 14001 and AS9100D Promote Sustainable and Reliable Manufacturing?

Industry certifications facilitate a proven approach that ensures manufacturing processes are reliable and sustainable. For example, an industry standard such as AS9100D, a quality management standard in the aerospace industry, ensures strict control over all processes involved in manufacturing, such as material design and inspection. This ensures improved traceability, risk, and quality of manufacturing, such as parts, and all this directly contributes to improved reliability for critical components in consumer electronics.

Conversely, ISO 14001 is an environmental management system that assists in limiting the environmental impact of manufactured goods by using resources effectively and preventing pollution. In this regard, for a manufacturer, obtaining this credential is an indicator of how it embraces the best practices of quality and environmental management. It is also an indicator that the components they supply to their clients are manufactured using the best practices of quality and environmental management in the world.

Conclusion

In summary, precision 5-axis CNC machining can be said to be a very important technology that plays a significant role in meeting the challenges associated with consumer electronics manufacturing. In fact, precision 5-axis CNC machining is capable of offering all of these, namely precision, efficiency, as well as adaptability. Looking forward, once these technologies come into play, things will take a positive turn.

Companies that want to maintain competitiveness in the industry may consider using the above high-end machining solutions in order to improve their processes.

Author Bio

The knowledge in this paper is grounded on industry best practices, coupled with the expertise JS Precision, an ISO 9001 and IATF 16949-certified precision manufacturing service expert, has. To get a tailored quote or more insights on 5-axis CNC machining services.

FAQs

Q1: What is the overall lead time for 5-axis machined components for the consumer electronics industry?

A: Lead times for both will vary depending on complexity. However, with 5-axis technology, turn-around times for a prototype will be 3 to 5 days, while for production, turn-around times will be 1 to 2 weeks. This is because of less setup and optimized tool paths, meeting ISO 9001 quality standards.

Q2: What is the improved accuracy of 5-axis machining compared to machining with turnings?

A: As it enables the machine to move in five axes simultaneously, it reduces errors in repositioning, allowing it to maintain accuracy to ±0.005mm. This has many advantages, especially when it comes to complex objects such as mobile phone cases, allowing it to maintain accuracy to ±0.005mm, thus preventing any fit problems.

Q3: What are some materials that are ideal candidates for processing via 5-axis machining in high production volumes?

A: Aluminium and its alloy, or Titanium alloy, for strength and lightness, or Plastic like PEEK, which can be used depending on the end application—e.g., Titanium for rugged wearables, and 5 axes for consistently good results regardless of the quantity.

Q4: Is 5-axis machining economical for producing small series?

A: It does. It lowers per-part prices for production sizes of 10 units down by process consolidation. This ensures reduced labor and time for manufacturers because of the elimination of multiple setups. In this way, it becomes more feasible for prototyping.

Q5: What are the effects of AS9100D on part quality?

A: “The certifications compel adherence to rigorous quality requirements, such as traceability and constant monitoring, which ensure that the components are of aerospace quality.” Such components are of superior quality and can withstand rough environments. Hence, their use in consumer electronics increases reliability and longevity.
