  • Chenab Bridge In India: World’s Highest Railway Bridge

    Chenab Bridge

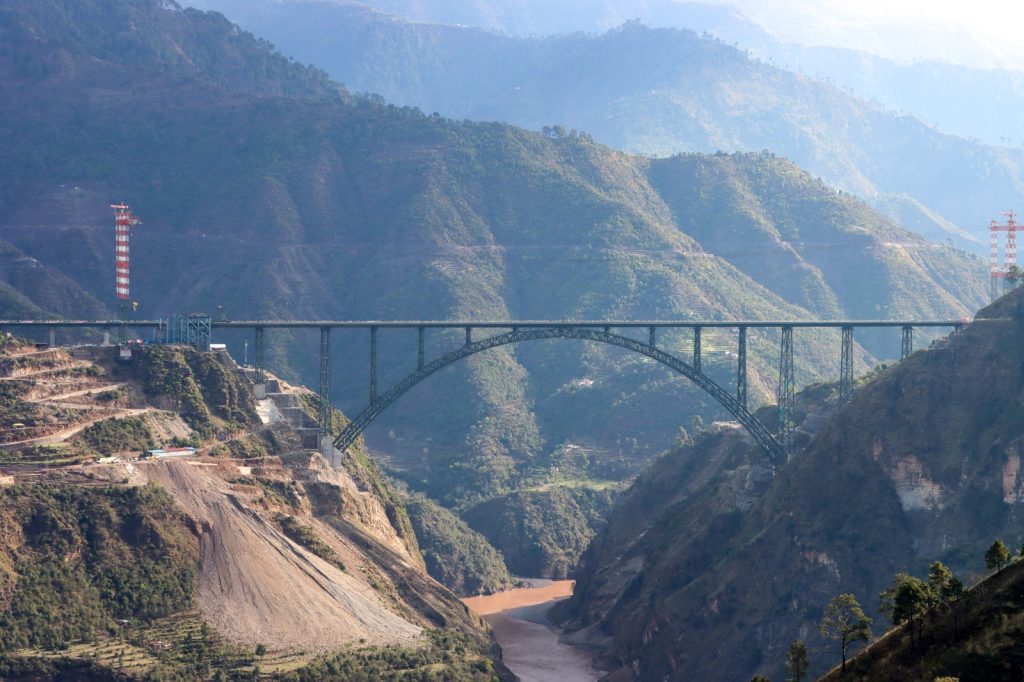

    Image Credits: wikipedia.org

    Chenab Bridge, newly inaugurated in June 2025, is not just the highest railway bridge in the world; it is a triumphant intersection of structural engineering, geotechnical mastery, and architectural vision. Towering 359 meters above the Chenab River in the rugged terrain of Jammu and Kashmir, India, this bridge stands taller than the Eiffel Tower. As an architect, certain structures simply take your breath away – not just for their sheer scale, but for the audacity of their conception and the brilliance of their execution. The Chenab Bridge is undoubtedly one such marvel. Let’s delve into what makes this structure a truly groundbreaking achievement.

    The Design: Arching Over the Impossible

    Chenab Bridge

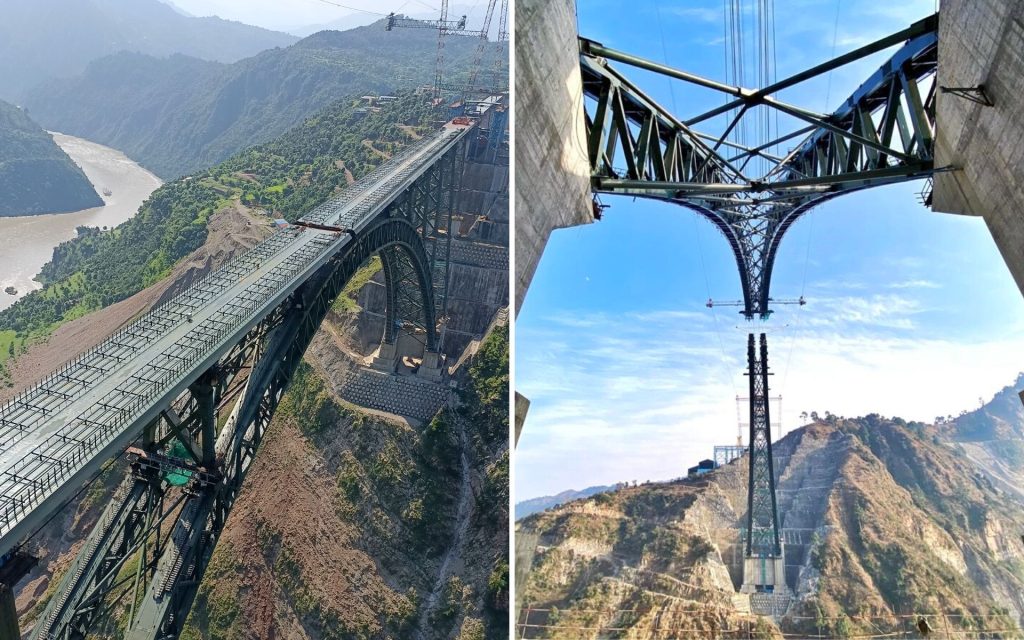

    Image Credits: world.newsx.com

    At its core, the Chenab Bridge is a steel arch bridge, a classic form reinvented for one of the most challenging geographies on Earth. The design was selected not only for its aesthetic appeal and strength, but also for its load distribution capabilities, crucial in a seismic Zone V region with harsh winds and cliffs. The bridge’s gently curving silhouette is visual poetry with its functional solution to the tectonic pressures and the deep gorges it spans. The chosen material, a steel and concrete deck arch bridge with a two-ribbed arch, wasn’t merely an aesthetic choice but a deeply considered engineering solution, optimizing for strength, flexibility, and longevity in an incredibly demanding environment.

    • Height: 359 meters (1,178 feet) from riverbed to rail deck
    • Main arch span: 467 meters (1,532 feet)
    • Total bridge length: 1,315 meters
    • Material used: 28,660 metric tonnes of steel
    • Design life: 120 years

    Visionaries Behind It

    Chenab Bridge

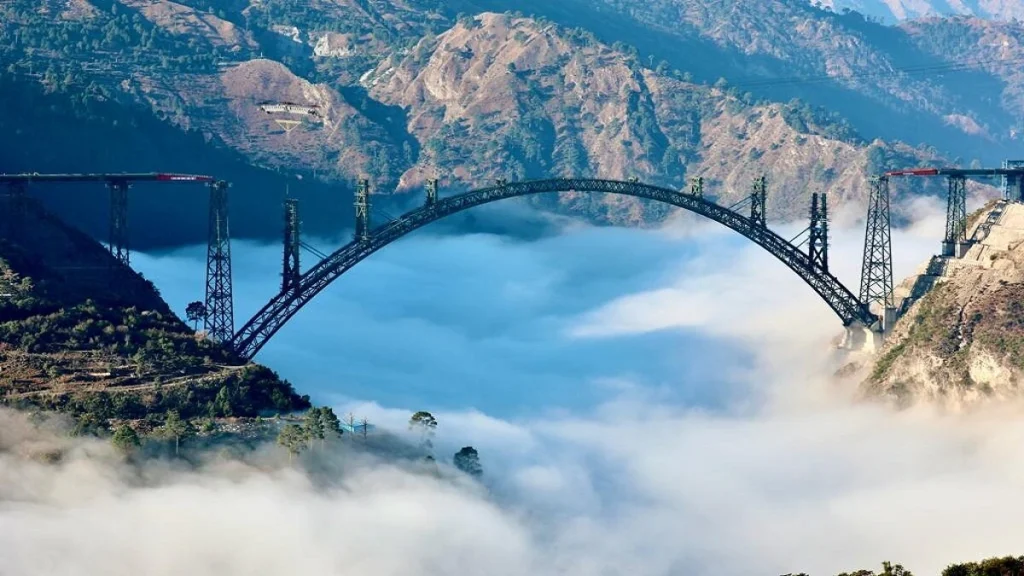

    Image Credits: indiatoday.in

    The project was led by Afcons Infrastructure, in collaboration with international experts including WSP Finland and Leonhardt, Andrä und Partner from Germany. One of the heroes of this engineering journey is Dr. G. Madhavi Latha, a professor at IISc Bangalore, who spent 17 years ensuring the geotechnical integrity of the foundation. Their work ensured that the Chenab Bridge would be more than just an engineering marvel; it became a long-lasting symbol of Indian architectural innovation. The Chenab Rail Bridge is a critical component of the 272-kilometre Udhampur-Srinagar-Baramulla Railway Link (USBRL) project, aimed at enhancing connectivity in the region. It is also part of the Ek Bharat Shreshtha Bharat initiative, connecting Kashmir to the rest of India.

    Designing for Extremes

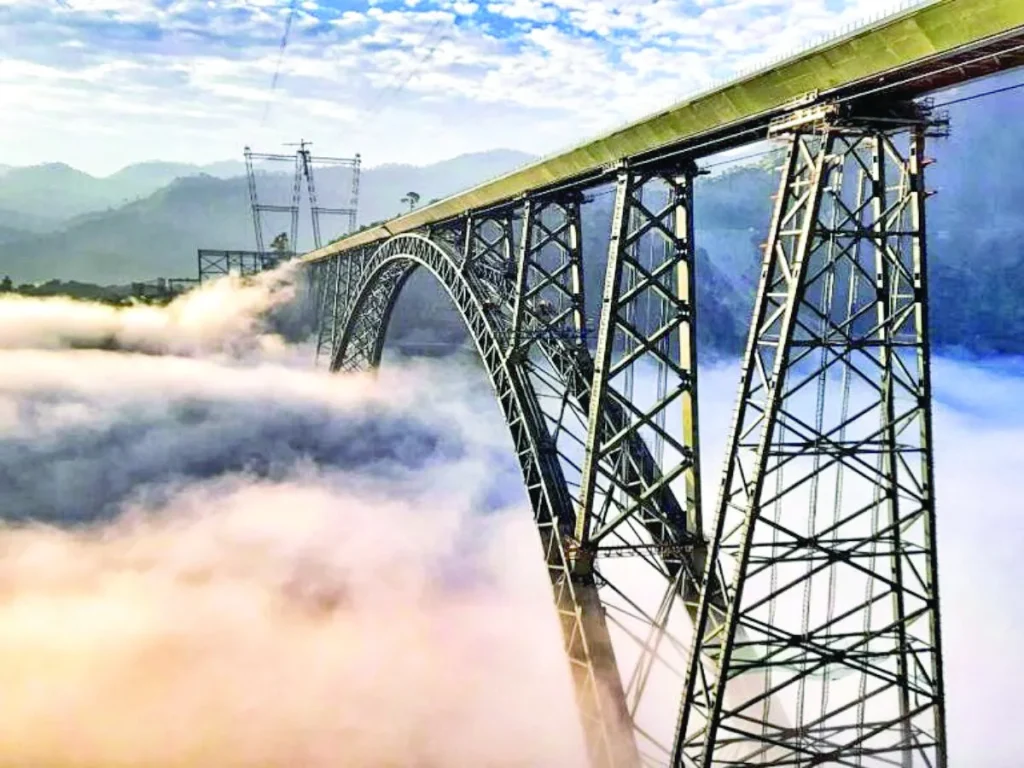

    Image Credits: greaterkashmir.com

    • Seismic Activity: Earthquakes are a real threat in this region. The bridge’s ability to withstand magnitudes up to eight on the Richter scale speaks volumes about the meticulous seismic design. This involves intricate detailing of connections, material selection, and dynamic analysis. It ensures the structure can deform and absorb energy without catastrophic failure.
    • Winds: Gusts reaching 266 km/h could easily tear apart lesser structures. The aerodynamic profiling of the bridge and the robust nature of its steel components are crucial in deflecting these powerful forces.
    • Temperature Extremes: From blistering summers to icy -20°C winters, the materials used in the bridge had to be carefully selected to prevent thermal expansion and contraction from causing undue stress. Moreover, the use of prefabricated steel boxes filled with concrete helps in managing these temperature fluctuations.
    • Geological Instability: Building on challenging Himalayan terrain requires specialized foundation design. The bridge’s foundations are not just deep but also highly sophisticated, considering the varying rock strata and potential for landslides

    A Glimpse into the Construction

    Chenab Bridge

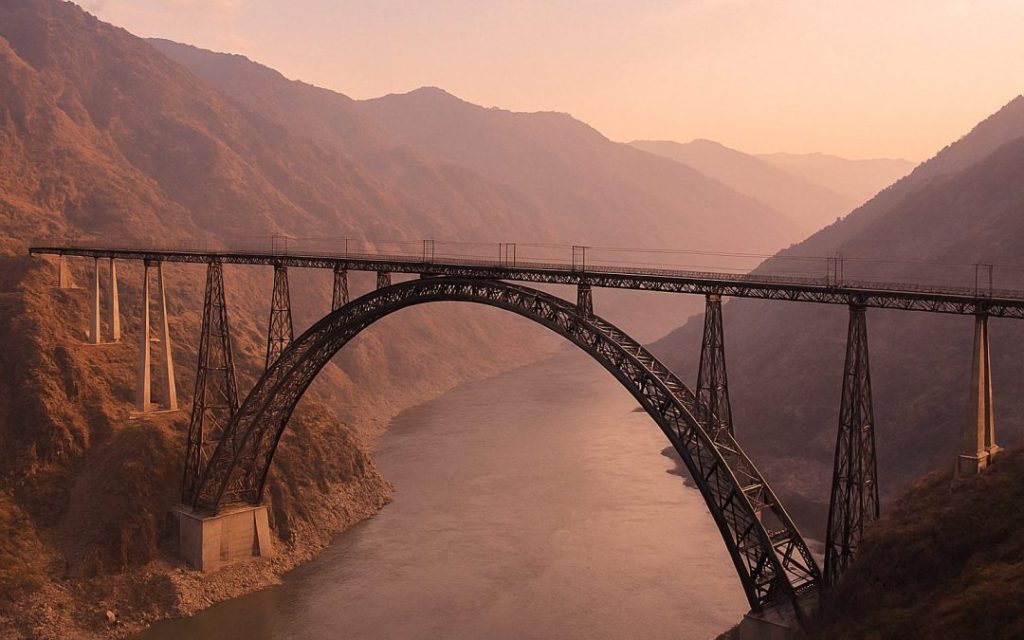

    Image Credits: wsp.com

    The Arch: The defining feature of the Chenab Bridge is its massive steel arch. This wasn’t just an aesthetic choice. It’s the most efficient structural form for spanning a wide gorge like the one over the Chenab River.

    • Load Distribution: An arch works primarily under compression, transferring the enormous weight of the bridge deck and live loads down and outwards to the strong abutments on either side of the gorge. This compressive strength is inherently stable and efficient, especially for such a long span.
    • Two-Ribbed Arch Design: The “two-ribbed” aspect is crucial. Instead of a single, massive arch, it utilizes two parallel ribs. This offers several advantages:
    • Redundancy: If one part of a rib were to be compromised, the other rib still provides significant support, enhancing the bridge’s overall resilience.
    • Stability Against Lateral Forces: The two ribs create a wider base for the arch, significantly improving its stability against lateral forces like high winds and seismic activity.
    • Construction Facilitation: The two-ribbed structure, made of prefabricated steel boxes, allowed for a more controlled and manageable erection process using the cantilever method. Sections could be brought up and joined incrementally.

    Steel Box Girders Filled with Concrete

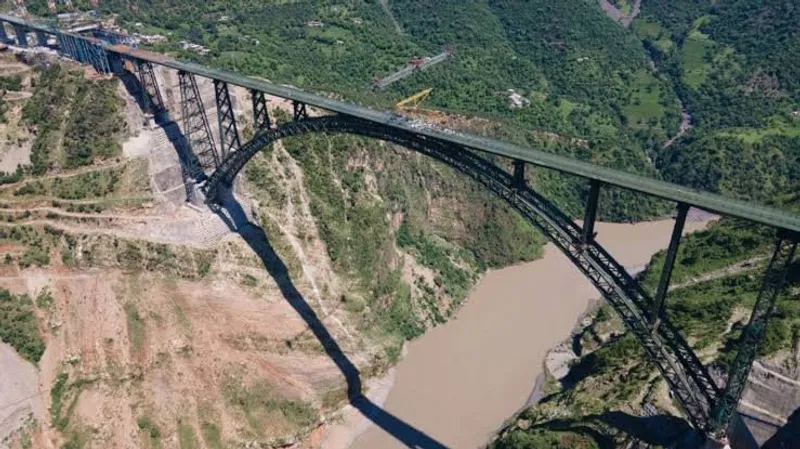

    Image Credits: blog.tatanexarc.com

    Steel: Provides the primary tensile and compressive strength, offering a high strength-to-weight ratio crucial for such a long span.

    Concrete Infill: The concrete within the steel boxes serves multiple purposes:

    • Increased Compressive Strength: Enhances the compressive capacity of the steel boxes, particularly under the immense loads.
    • Damping: The mass of the concrete helps to dampen vibrations caused by passing trains and wind, leading to a smoother ride and reducing fatigue on the structure.
    • Thermal Inertia: The concrete helps to moderate temperature fluctuations within the steel, reducing thermal stresses and extending the lifespan of the steel.
    • Corrosion Protection: While the exterior is painted, the concrete inside provides an additional layer of protection against internal corrosion of the steel, especially important in a humid environment.

    Cantilever Construction: The arch, the heart of the bridge, was built using the cantilever method, extending simultaneously from both banks. Furthermore, this requires incredible precision and constant monitoring to ensure perfect alignment in the middle.

    Material Selection and Protection: The choice of high-quality structural steel and the application of a special corrosion-resistant paint with a 15-year lifespan highlight the commitment to durability and minimal maintenance.

    Safety: The integration of an advanced online monitoring system and aerial security measures underscores the paramount importance given to safety. It is a critical consideration in any large-scale architectural endeavor.

    A Symbol of Progress

    • Connectivity: Bridging a geographical divide, it brings the Kashmir Valley closer to the national railway network, fostering economic development and facilitating easier movement of people and goods.
    • Resilience: It stands as a symbol of overcoming seemingly insurmountable challenges. It also showcases human determination to connect and build for the future.
    • Innovation: It’s a living example of how cutting-edge engineering and architectural design can converge to create something truly extraordinary.

    Conclusion

    The Chenab Bridge is not just an architecturally pleasing structure, but a triumph of integrated engineering disciplines. Every design choice, every material, and every construction technique was meticulously selected and executed to create a bridge that stands as a testament to what humanity can achieve when pushing the boundaries of innovation. Lastly, it’s a structure that will inspire engineers and architects for generations to come.

    Content Writing and Research: Priyanshi Shah
