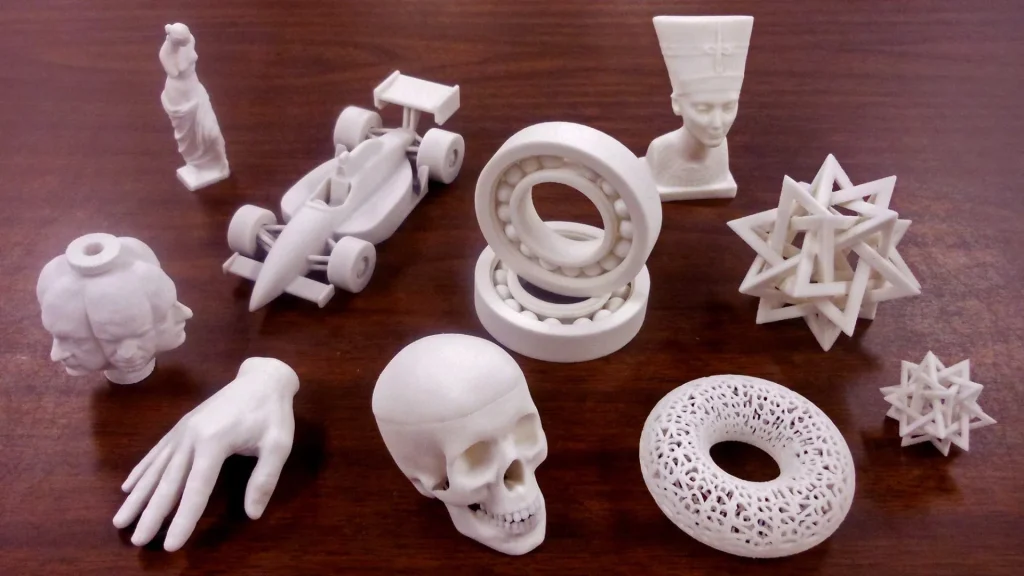

Architects can convert a facade photo or massing sketch into a printable STL model using an AI-based image-to-3D converter. From there, repair the mesh and check the dimensions before sending it to a 3D printer.
Turning a flat reference photo into a printable architectural model means giving it depth data it doesn’t have. A browser-based converter like Meshy AI can build a printable 3D model from a photo without any CAD software. That lets a design team photograph a cornice profile, a column capital, or a precedent building facade. The result is a starting model that still needs scaling, mesh repair, and a printability check before it goes to the slicer.
Image converters read the visual depth in a 2D photo. They turn it into a polygon mesh with wall thickness, producing closed geometry you can print as a study or presentation model.
A raster photo has no depth coordinates, and a 3D printer needs exactly that. The software estimates depth from contrast and lighting to work out where solid surfaces sit. According to Sculpteo (May 2024), more than 68% of desktop 3D printing users hit print failures caused by non-manifold geometry during conversion. AI-based tools cut down on this by rebuilding the surfaces a photo can’t see. That includes the rear face of a cornice or the back of a column capital. That means a team can shoot a photo of an existing facade detail or a reference building and have a usable study model within minutes.
You upload a clear reference photo, set the dimensions against your drawings, repair the mesh, and export a watertight file. Those four stages take a facade detail or massing sketch to a physical model with no manual modeling.
Check the wall thickness before you send anything to the printer. Thin walls are the usual reason a printed cornice or balustrade section cracks once it’s handled during a client review.
Uploading several angles lets the converter read a building or detail from more than one viewpoint at once. That removes the blind spots that produce warped surfaces or gaps.
A single photo forces the software to guess at whatever sits behind the visible face. With several images, it compares depth across the angles and keeps wall thickness consistent. According to Wohlers Associates (January 2025), multi-view AI synthesis improves geometric tolerance accuracy by 42% over single-image depth maps. Supplying a front elevation, a side angle, and a close-up detail shot gives the software what it needs. That’s what lets a cornice profile or a window surround sit flush against a scale model wall.
They fail because a 2D image has no built-in thickness and no closed mesh boundary. A slicer needs a fully enclosed solid volume to calculate a correct toolpath.
When the surface isn’t closed, the slicer can’t tell where the solid material ends. Meshes with overlapping surfaces make printers skip layers or extrude stray filament. Load-bearing study parts, like a bracket or a column base, also need solid interior fill to hold weight on a presentation model.
Aris Thorne, an additive manufacturing researcher at the MIT Media Lab, put it this way in February 2025: “Generative mesh engines must prioritize topological manifoldness over cosmetic detail to ensure seamless slicing execution without manual repair.”
Non-manifold errors come from disconnected vertices, open boundary edges, and self-intersecting faces created while the software estimates depth. Strong contrast in the source photo tends to open up gaps.Shadows around a cornice profile or a column base throw off the pixel-elevation step. When the software reads a shadow as depth, holes appear in the surface. Built-in browser repair routines stitch those points back together so the printed detail holds up during handling.
Multi-image input can improve geometric consistency, but the final dimensions still need to be checked in a slicer or CAD tool against your drawings.
Parts like window surrounds and balusters need tight tolerances. A single photo often warps the rear panel and leaves gaps when it comes time to compare it against the drawing set. Several angles give the software full spatial context, so wall thickness stays even, and the mounting surfaces stay flat across a detailed piece. That accuracy means less sanding and filing before the model goes on the review table.
Free browser tools handle polygon reduction, format conversion, and hole filling online. A team can clean up a detailed model without installing a full CAD program.
Detailed facade elements often come out of conversion with very high polygon counts that bog down a slicer.
Because a very dense mesh slows the slicer without adding any detail you can actually see in the plastic. A desktop printer can’t reproduce polygons smaller than its nozzle.
Most FDM desktop printers run a 0.4mm nozzle. Any detail below that just wastes processing time during slicing. Cutting the triangle count by around 70% speeds up the file while keeping the decorative profile sharp.
AI modeling builds a full volume instead of a flat, single-sided surface. That gives you a real multi-sided model, where a heightmap only produces a flat relief plaque.
A heightmap raises light and dark pixels into a vertical relief pattern. That falls apart on anything rounded, like a column capital, a curved handrail end, or a sculpted cornice profile. AI modeling recognizes the actual geometry of things like columns and balusters and fills in the hidden surfaces on its own.
Choose generative AI when the model needs real depth or a hollow interior. Heightmaps work fine for flat relief panels or surface texture studies, but not much else.
Going with generative AI saves time on massing models, facade study pieces, and competition entry models. It also keeps the mounting points accurate, so a printed detail sits correctly on the base model.
A design team no longer needs CAD modeling time to turn a reference photo into a physical study model. A generative tool converts a plain photo into solid, sliceable geometry meant for architectural review and presentation. Single-photo conversions want clean lighting to work well, while multiple images give better dimensional accuracy for detail work. Browser-based repair tools prep the file without any local installation. Meshy offers an accessible starting point for image-to-3D workflows, while final dimensions, topology, and printability still require validation against your drawing set. If you already have a 3MF model and need STL, Meshy’s free browser-based converter can handle that separate format-conversion step.
Can architects convert a reference photo into a 3D-printable study model for free?
Meshy’s free plan lets you test image-to-3D generation in the browser, but downloading generated models currently requires a paid plan. Free conversion of an existing 3D file is a separate workflow.
How do I fix non-manifold mesh errors in an architectural model file?
Run the file through an online STL repair tool to close holes, fix inverted normals, and join loose vertices before it goes into your slicer.
Why do single-image conversions of a building detail look flat on the back?
Single-image AI tools infer unseen surfaces, which may not match the reference object. Additional views can reduce this ambiguity, but the reconstructed geometry still needs inspection.
What file format works best for 3D printing architectural models?
STL is the standard for print software. 3MF handles unit scaling and color better if the project needs those for a more complex model.
