Battery Energy Storage Systems (BESS) are quickly becoming a cornerstone of modern energy infrastructure. As the world pivots toward renewable energy sources like solar and wind, the need for reliable energy storage has never been more critical. For architects, this shift presents both an opportunity and a challenge: designing spaces that can safely and efficiently house these robust systems. A crucial, yet often overlooked, aspect of this design process is the foundation upon which the BESS rests. This guide will walk you through the five essential things every architect should know about designing and specifying BESS foundations, ensuring your projects are built on solid ground from the start.

1. Soil Conditions Dictate Foundation Design

Before any concrete is poured, the first step is to understand the ground itself. The geotechnical properties of the site are the most significant factor influencing the design of BESS foundations. A thorough geotechnical investigation is not optional—it is a mandatory prerequisite for a safe and stable installation.

What to Look For in a Geotechnical Report

A comprehensive report, conducted by a qualified geotechnical engineer, will provide critical data, including:

·         Soil Bearing Capacity: This is the soil’s ability to support the load imposed by the BESS unit and its foundation. A low bearing capacity may necessitate a larger or more complex foundation design, such as a mat slab or deep foundations like piles.

·         Soil Composition: Different soil types (clay, sand, silt, rock) behave differently under load and changing moisture levels. Expansive clays, for instance, can swell and shrink, exerting immense pressure on foundations and causing movement that can damage the BESS equipment.

·         Groundwater Levels: A high water table can affect soil stability and introduce uplift forces on the foundation. It may require waterproofing measures and specific design considerations to prevent moisture from compromising the structure and the sensitive electronic equipment inside the BESS.

·         Seismic Activity: In seismically active regions, the soil’s liquefaction potential—its tendency to lose strength during an earthquake—must be assessed. This analysis directly informs seismic design requirements for the foundation.

Ignoring these subterranean factors can lead to differential settlement, where parts of the foundation sink at different rates. This can twist the BESS enclosure, misalign components, and ultimately lead to system failure. Architects must insist on a detailed geotechnical report early in the project timeline and work closely with structural engineers to interpret its findings into an appropriate foundation strategy.

2. Load Calculations are More Than Just Weight

When planning for BESS foundations, it is easy to focus solely on the dead load—the static weight of the BESS unit itself. However, a comprehensive load analysis must account for a variety of forces to ensure the foundation is sufficiently robust.

Types of Loads to Consider

·         Dead Loads: This includes the weight of the BESS container, the batteries, inverters, transformers, HVAC systems, and the concrete foundation itself. Battery racks are incredibly dense, and their weight can be substantial, often exceeding expectations.

·         Live Loads: These are temporary or movable loads. This includes maintenance personnel walking on the roof, equipment brought in for servicing, and environmental loads like snow accumulation in colder climates.

·         Wind Loads: BESS enclosures, particularly larger containerized systems, present a significant surface area to the wind. Wind can exert lateral (sideways) and uplift forces on the structure. The foundation must be designed to anchor the system securely against the maximum anticipated wind speeds for the location, as specified by local building codes, e.g., ASCE 7.

·         Seismic Loads: In earthquake-prone areas, the foundation must be designed to handle the lateral and vertical forces generated during a seismic event. This involves anchoring the BESS unit securely to the foundation and ensuring the foundation itself can transfer these forces safely into the ground without failure.

Architects should coordinate with the BESS manufacturer to obtain precise weight and dimensional data for all equipment. This information, combined with local building code requirements for environmental loads, allows the structural engineer to perform accurate calculations and design a foundation that can withstand all potential forces throughout its operational life.

3. Durability and Material Selection are Crucial

BESS foundations are expected to last for decades, often in exposed and challenging environments. Therefore, the choice of materials and design for durability is paramount. Concrete is the most common material, but not all concrete is created equal.

Key Considerations for Concrete Foundations

·         Concrete Strength: The specified compressive strength of the concrete (measured in psi) must be sufficient to handle the calculated loads. A typical range for BESS foundations is 3,000 to 5,000 psi, but this will be determined by the structural engineer based on the project’s specific needs.

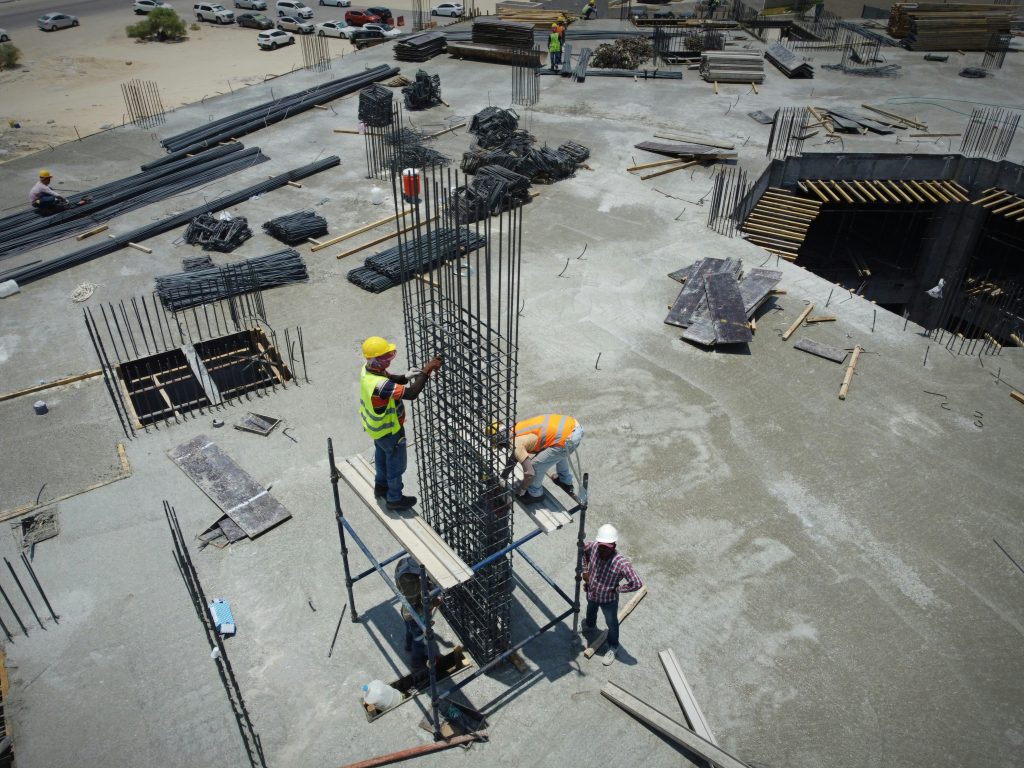

·         Reinforcement: Steel reinforcement (rebar) is essential to give the concrete tensile strength, helping it resist forces that cause cracking and bending. The size, spacing, and grade of the rebar are critical design elements that prevent foundation failure under load.

·         Slab Thickness and Design: The two primary types of shallow foundations are slab-on-grade and mat foundations. A slab-on-grade is a single layer of concrete, while a mat foundation is a much thicker, heavily reinforced slab that covers the entire footprint of the structure. The choice depends on the BESS weight and soil conditions. A heavy system on poor soil will likely require a mat foundation.

·         Environmental Exposure: The foundation must be designed to resist local environmental conditions. In areas with freeze-thaw cycles, air-entrained concrete is necessary to prevent damage from water freezing and expanding within the concrete. In coastal or industrial areas, a concrete mix with higher resistance to sulfates and chlorides may be required to prevent corrosion of the steel reinforcement.

Proper curing of the concrete is also vital. If concrete dries too quickly, it will not reach its designed strength. Architects should ensure that specifications for curing are included in the construction documents to guarantee the foundation’s long-term durability.

4. Thermal Management and Drainage Matter

Battery performance and safety are highly dependent on maintaining a stable operating temperature. While the BESS unit’s internal HVAC system handles most of the thermal regulation, the foundation design can either help or hinder this process.

Designing for Thermal Stability and Water Management

·         Thermal Bridging: The foundation can act as a thermal bridge, conducting heat to or from the ground. In hot climates, this can increase the cooling load on the HVAC system. In cold climates, it can draw heat away. Incorporating a layer of rigid insulation beneath the concrete slab can help isolate the BESS from ground temperature fluctuations, improving energy efficiency.

·         Cable and Conduit Integration: The design must accommodate trenches and conduits for power and data cables that run between the BESS, inverters, and the grid connection point. These need to be planned meticulously to avoid interfering with foundation reinforcement and to ensure they are correctly sealed to prevent water ingress.

·         Effective Drainage: Water is the enemy of any electrical system. The site grading around the foundation must be designed to direct surface water away from the BESS unit. Sloping the concrete pad slightly (a 1-2% grade is typical) and installing perimeter drains can prevent water from pooling around or under the foundation, which could lead to moisture problems and soil erosion.

By thinking about these elements during the design phase, architects can create an integrated system where the foundation actively contributes to the operational efficiency and protection of the BESS.

5. Adherence to Codes and Standards is Non-Negotiable

The BESS industry is subject to a growing body of codes, standards, and regulations designed to ensure safety and reliability. Architects must be aware of these requirements as they directly impact the design of the entire facility, including its foundation.

Key Codes and Standards

·         International Building Code (IBC): The IBC provides the foundational requirements for structures, including load calculations and material standards.

·         NFPA 855 (Standard for the Installation of Stationary Energy Storage Systems): This is a critical safety standard that outlines requirements for fire protection, spacing between BESS units, and ventilation. These factors can influence the size, layout, and design of the foundation and overall site plan.

·         Local Ordinances: Every jurisdiction may have its own specific zoning laws, permitting processes, and building amendments. Engaging with the local Authority Having Jurisdiction (AHJ) early in the project is essential to understand all requirements.

Compliance is not just about getting a permit; it is about mitigating risk. A failure to adhere to these standards can result in costly redesigns, project delays, and significant safety liabilities. Architects play a crucial role in ensuring the entire project team is aligned from day one to meet all applicable regulations.

Building for a Powerful Future

As architects continue to shape the built environment, integrating new technologies like Battery Energy Storage Systems will become increasingly common. The foundation, though hidden from view, is the critical element that ensures these powerful systems operate safely and effectively for their entire lifespan.

By prioritizing a thorough geotechnical analysis, accounting for all potential loads, selecting durable materials, integrating thermal and drainage considerations, and strictly adhering to codes, you can design BESS foundations with confidence. Collaborating closely with geotechnical and structural engineers is not just good practice—it is essential for a successful outcome. Taking these five points to heart will enable you to lead BESS projects that are not only innovative but also fundamentally sound, secure, and ready for the future of energy.
