Architectural Illustrations: Tips and Ideas to Master Different Styles

Architectural illustrations are more than just a representational tool; it is the language through which design speaks. Whether in the early stages of ideation or the final phase of presentation, architectural illustration allows architects to convey vision, emotion, and spatial understanding with clarity and impact. From freehand sketches to advanced digital tools and lifelike 3D renderings, mastering architectural illustration unlocks the ability to communicate ideas in ways that words and technical drawings alone cannot. This article explores practical tips and creative strategies to help you elevate your architectural illustration skills and confidently express every stage of your design journey.

The Role of Architectural Illustrations in Design

Architectural illustrations do much more than simply decorate a project report or presentation. They explain complex design ideas clearly and effectively, evoking emotions and helping clients and stakeholders connect with the project’s vision on a deeper level. While technical drawings focus on measurements, materials, and construction details, architectural illustrations provide the much-needed context, atmosphere, and sense of place that convey what it feels like to inhabit a space.

A strong illustration inspires trust and excitement, which makes it easier to gain approvals and support. It transforms lines and symbols on paper into engaging stories about light, shadow, texture, and scale. This emotional connection helps bridge the gap between professional architects and laypeople, making architectural communication more inclusive.

Different project phases and diverse audiences require varied illustration approaches. Early conceptual sketches ignite creativity and discussion, allowing rapid exploration of ideas. Detailed digital drawings clarify design development and construction specifics. Meanwhile, 3D renderings offer immersive experiences that visualize how a completed building will look and feel within its environment. Knowing when and how to use these styles makes you a more effective architect and communicator.

Architectural illustration
Project By: Deepak Berthalome Architects

Hand-Drawn Sketches: Expressing the Creative Pulse

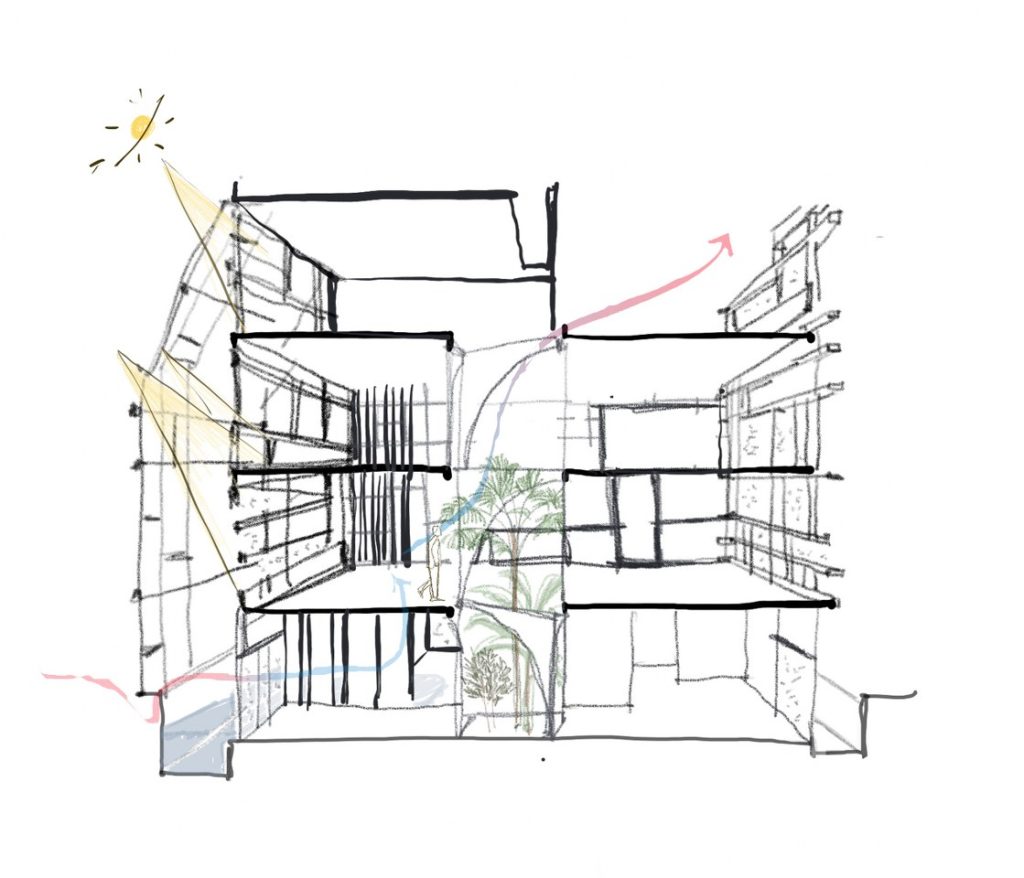

Hand-drawn sketches capture the initial burst of creative energy and act as the visual thinking tool of architects. Their informal nature encourages experimentation and rapid iteration. Sketching is often the very first step in the design process, translating abstract ideas from the mind onto paper in fluid lines, shapes, and gestures.

What makes hand sketches so powerful is their spontaneity and expressiveness. Varying line weights create emphasis and depth, while shading and hatching suggest volume, texture, and light direction. The small imperfections, such as uneven lines or smudges, add personality and warmth, inviting viewers to engage on an emotional level.

Architects use a wide range of tools for hand sketches, from soft pencils and fine liners to charcoal and markers. Each tool offers a unique effect, and experimenting with them helps discover your style. Adding colour splashes, often with watercolours or coloured pencils, helps differentiate materials, highlight focal points, or express mood.

Hand sketches work exceptionally well during client meetings and site visits when time is limited. They serve as a transparent window into your design process, inviting conversation and collaboration. Sketches remind everyone that architecture is not just a technical exercise but also a creative art rooted in human imagination.

Architectural illustration
Project By:  Sian Architects

Digital Illustrations: Balancing Accuracy with Artistry

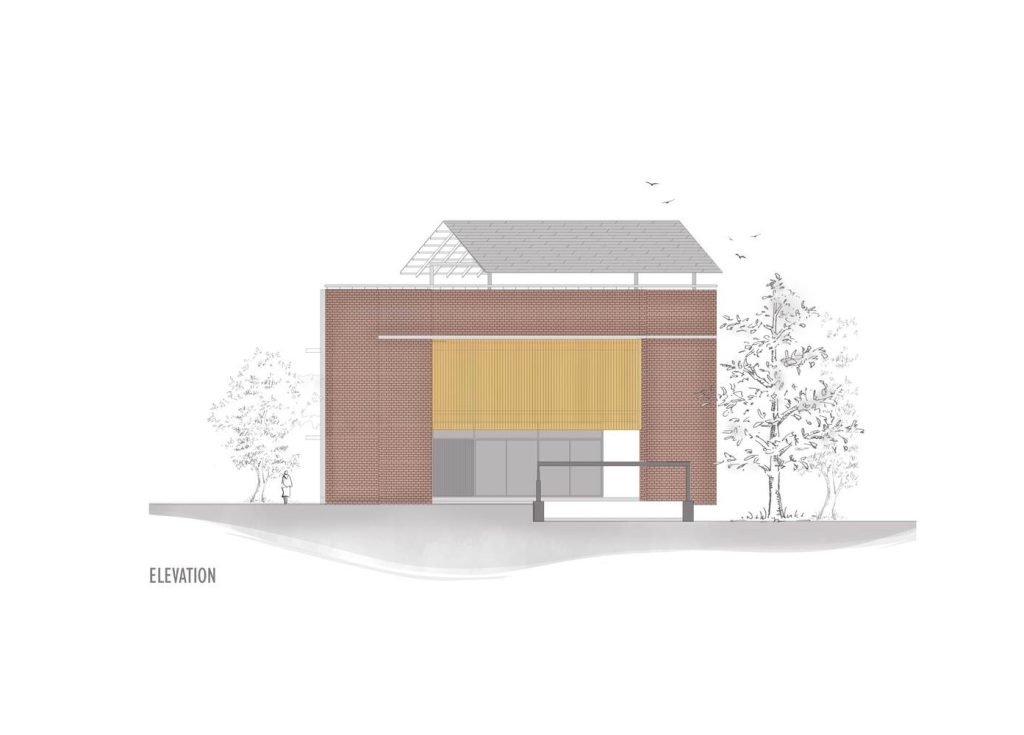

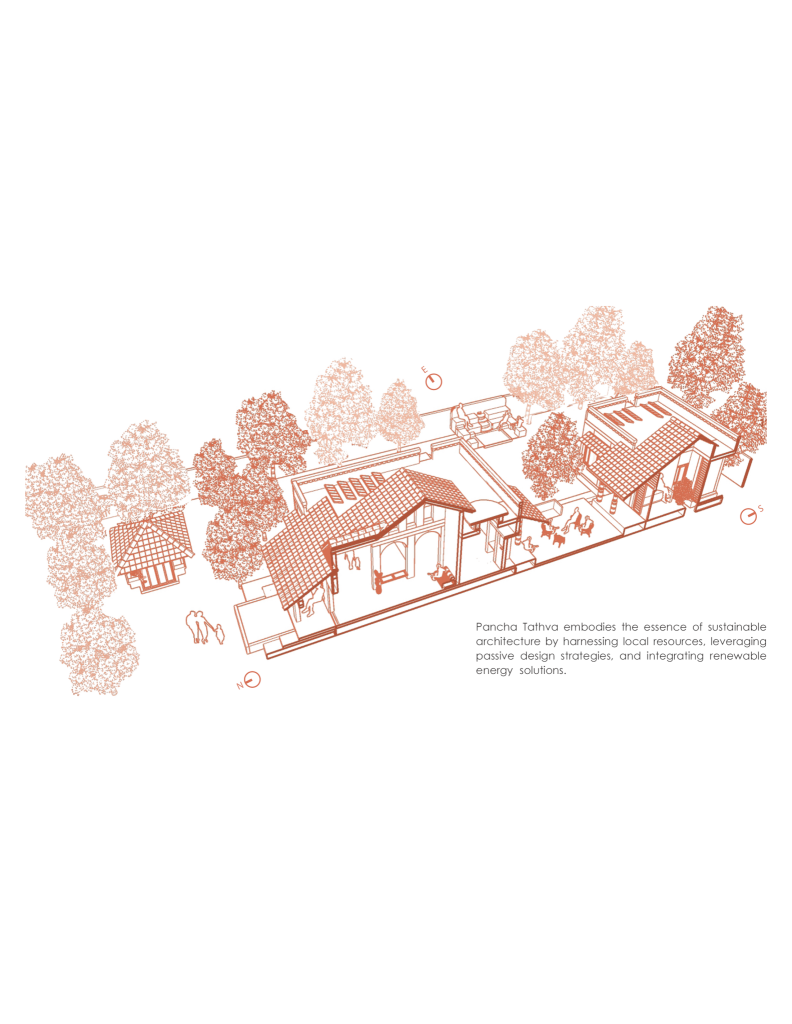

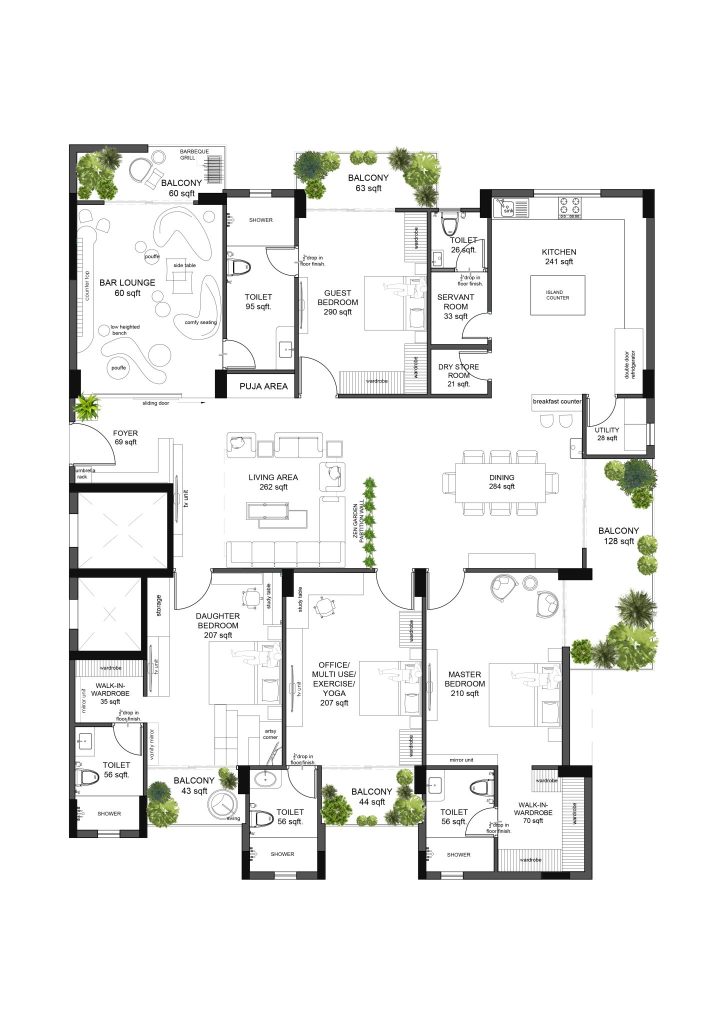

Digital illustration brings the best of both worlds, precision and artistry, to architectural visuals. Software like Adobe Illustrator and Photoshop allows architects to create crisp, clean drawings that can be refined, layered, and adapted with ease. Unlike hand sketches, digital illustrations offer the flexibility to edit without losing quality, enabling complex and polished compositions.

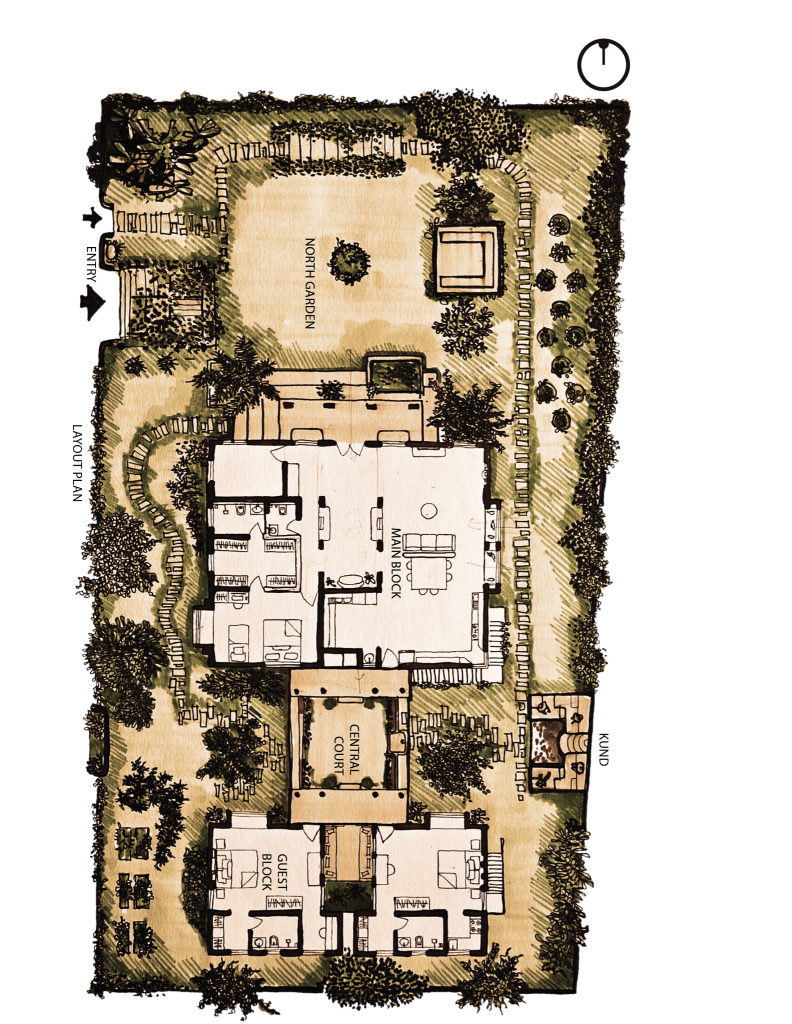

One significant advantage of digital tools is their ability to replicate traditional media effects, while adding new capabilities. Architects can apply watercolour washes, ink textures, pencil strokes, or even collage effects digitally, blending artistic flair with technical clarity. Colour can be used strategically to guide the viewer’s attention, evoke specific moods, or indicate different materials and finishes.

Digital illustrations serve as a powerful bridge between concept and construction. They communicate detailed design information in a visually engaging way that suits both creative presentations and technical reviews. Integrating graphic symbols, diagrams, and annotations further enhances clarity, especially when presenting to consultants, contractors, or municipal authorities.

Working digitally also supports efficient collaboration. Digital files can be shared instantly, and changes can be made based on feedback without redrawing entire plans or images. This flexibility helps architects maintain both creativity and accuracy throughout the design process, speeding up revisions and approvals.

Architectural illustration
Project By: altARQ

3D Renderings: Visualizing Space in Three Dimensions

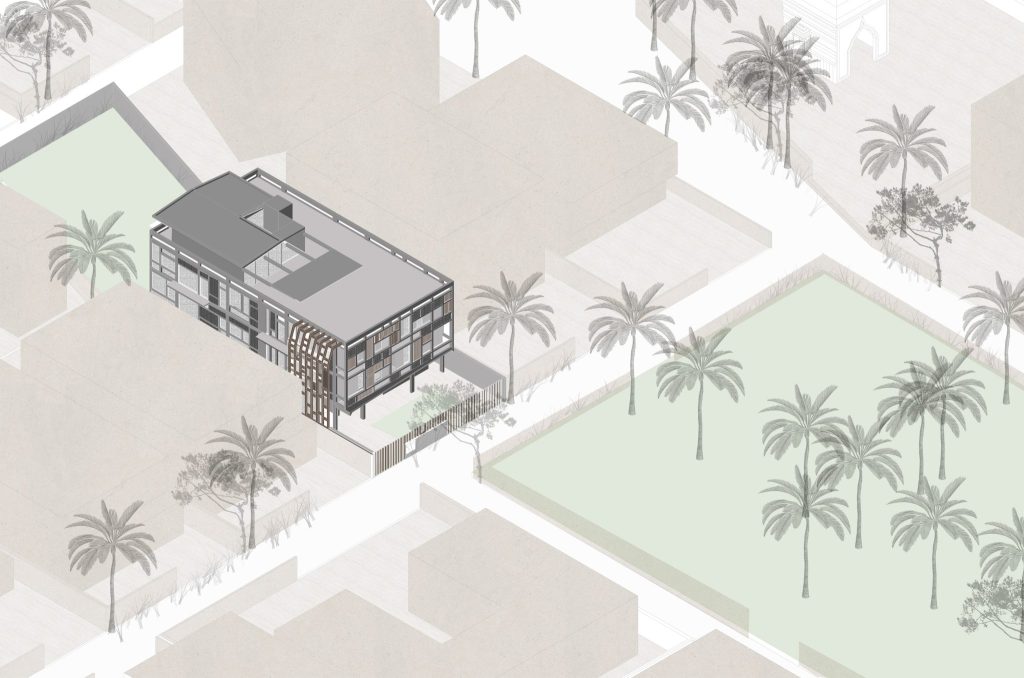

3D renderings bring architectural designs vividly to life by offering realistic or stylized views of buildings and spaces. Through accurate three-dimensional modelling, architects can explore form, light, materials, and site context in ways that flat drawings simply cannot match.

One of the greatest strengths of 3D rendering lies in its spatial immersion. Clients and stakeholders can view interiors and exteriors from multiple angles, intuitively understand scale and proportions, and appreciate how natural and artificial light play on surfaces throughout the day. This clarity builds confidence in the design and helps avoid costly misunderstandings during construction.

Creating effective 3D renderings begins with building a detailed and accurate 3D model that correctly reflects dimensions and architectural details. Lighting is crucial; it highlights important architectural features and creates the desired mood or atmosphere. Adding contextual elements such as furniture, landscaping, and human figures injects life into the scene, helping viewers imagine the space as lived-in and functional.

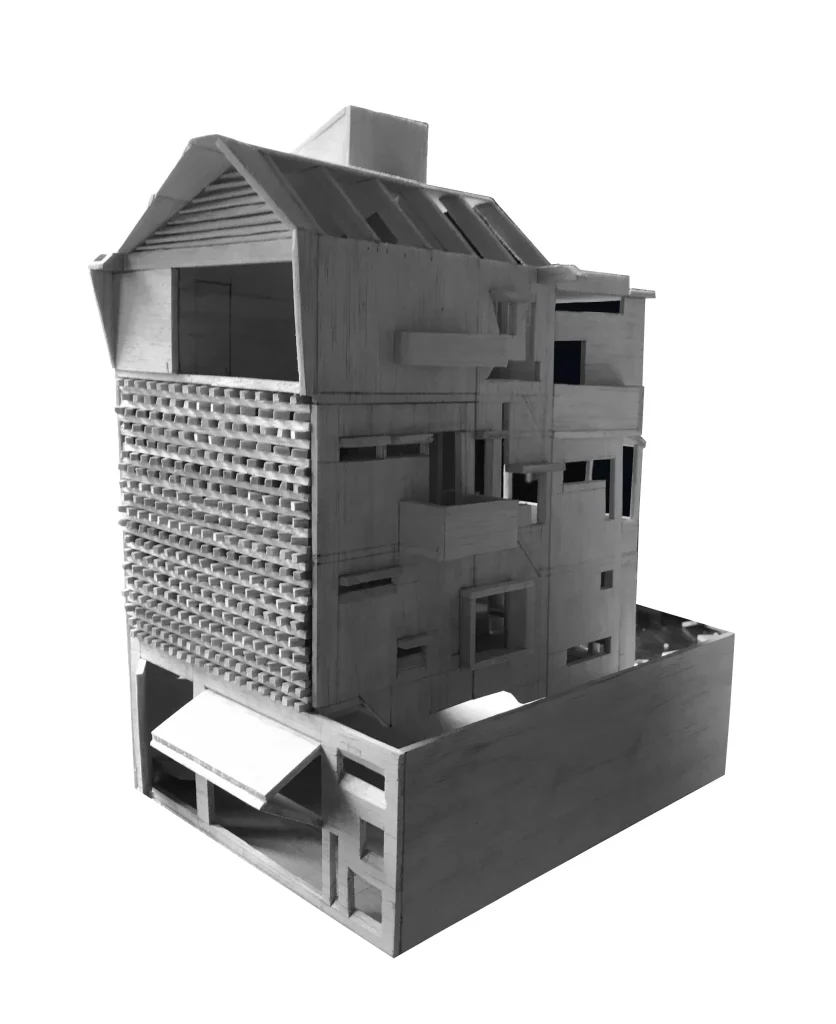

Beyond photorealistic renderings that showcase materials and finishes with high fidelity, architects can experiment with alternative rendering styles. Clay renders, which present the form and volume without distractions of colour or texture, help focus on massing and shadow. Sketch-style renderings bring back the hand-drawn feel, emphasizing creativity and concept.

Thoughtful composition and camera placement turn static images into compelling storytelling tools. Well-framed perspectives guide the viewer’s eye through the design narrative, revealing key moments and design intentions.

Today, 3D renderings have become essential in client presentations, marketing materials, and coordination meetings. They offer a window into the final built environment that no other illustration method can fully replicate.

Project By: Sian Architects

Combining Illustration Styles for Maximum Impact

No single illustration method can meet every architectural communication need. The most compelling presentations often combine hand sketches, digital drawings, and 3D renderings, blending their strengths to tell a richer and more complete design story.

For instance, an architect might start with hand sketches to communicate initial concepts with spontaneity and warmth. Next, digital illustrations develop those ideas into clearer, coloured, and more detailed visuals suitable for technical review and planning permissions. Finally, 3D renderings bring the design into vivid reality, immersing clients and stakeholders in the space and helping them understand the finished building.

When blending different illustration styles, maintaining a consistent visual language is crucial. This means using harmonious colour palettes, line weights, and graphical elements across all materials. Layering hand-drawn textures or sketches on top of digital plans or 3D images can add warmth and personality, making presentations memorable and engaging.

By tailoring your illustration approach to the project phase and audience, you create a versatile communication toolkit that helps express the full story of your architecture clearly and beautifully.

Project By: Deepak Berthalome Architects

Architectural illustration evolves rapidly, driven by advances in technology and creative experimentation. Virtual reality (VR) and augmented reality (AR) are changing how architects and clients experience projects. These immersive tools allow users to walk through virtual spaces, interact with design elements, and make informed decisions before construction begins, greatly improving design understanding and collaboration.

Artificial intelligence (AI) and generative design tools are gaining traction, enabling architects to quickly generate multiple design variations and visualization options. These tools accelerate workflows, spark creativity, and help explore possibilities beyond traditional methods.

Many digital illustration tools now feature brushes and effects that mimic hand-drawn aesthetics, combining the warmth and expressiveness of sketches with the flexibility of digital editing. Real-time rendering software such as Enscape and Lumion empowers architects to produce high-quality visualizations instantly, facilitating faster client feedback and iterative design.

Furthermore, hybrid media approaches blending photography, digital painting, collage, and hand-drawn elements are becoming popular. This fusion creates unique visual languages that communicate architectural ideas in vivid, artistic ways that capture attention and imagination.

Project By: Aslam Sham Architects

Conclusion: Communicating Architecture Through Illustrations

Architectural illustrations do more than describe buildings; they communicate stories, feelings, and spatial experiences. By mastering hand-drawn sketches, digital illustrations, and 3D renderings, architects equip themselves with powerful tools to present ideas convincingly and creatively.

Project By:  Studio Bāham Architects

Each style plays a vital role throughout the design process, and when used thoughtfully together, they complement each other beautifully. Whether you are brainstorming on paper, refining designs digitally, or creating immersive visualizations, your architectural illustrations will bring your design to life.

Keep experimenting with new techniques, learning emerging tools, and blending styles. Your architectural illustrations will not only document your designs but also inspire, persuade, and connect people to the spaces you create.
