Old factories, foundries and warehouses are some of the most sought-after shells in architecture today. Their tall volumes, long spans and honest materials make them ideal for new workshops, light manufacturing, studios, showrooms and mixed-use spaces. Many of these buildings also come with a feature that is easy to overlook: a lifting system, or the structure to carry one.

For projects that stay industrial or semi-industrial, an overhead crane is often what makes the building work again. This guide explains how architects, engineers and building owners can plan adaptive reuse of industrial buildings that involve adding a new overhead crane or upgrading an existing one, without compromising structure, safety or the character of the original building.

Why Overhead Cranes Matter in Adaptive Reuse Projects

Adaptive reuse means giving an existing building a new purpose instead of demolishing it. When the new purpose involves heavy components, molds, steel parts, precast elements or machinery, material handling becomes a design question from day one.

A well-planned crane retrofit can:

• Move heavy loads across the floor without forklifts or floor-level traffic
• Free up usable floor area, because the lifting system runs overhead
• Improve worker safety by reducing manual handling
• Support new production lines without rebuilding the building
• Preserve the industrial identity of the space, with the crane itself sometimes kept as a visible feature

The challenge is that the building was designed for a different set of loads, and often a different era of codes. That is why the first step is never choosing a crane. It is understanding the building.

Start With a Structural Assessment

Before any crane is specified, a qualified structural engineer should assess the existing structure. An overhead crane does not only add vertical weight. It creates several types of loading that the building must carry:

• Vertical wheel loads from the crane bridge, trolley, hoist and the lifted load
• Lateral (surge) loads from trolley travel and load swing
• Longitudinal loads from crane braking and acceleration
• Dynamic and fatigue effects, which increase with a higher crane duty class and more lifts per day

Key items to check include:

1. Runway beams and rails: Are there existing crane beams, and what were they designed for? Their condition, section size and connections matter as much as their original rating.
2. Columns and bracing: Columns must carry the added load and resist lateral forces. Old frames may need strengthening or new bracing.
3. Foundations: Soil conditions and footing capacity must be verified, particularly if the building has settled or been modified over time.
4. Roof structure: If an underslung system is considered, the roof trusses or beams must be able to carry suspended loads.
5. Material condition: Corrosion, cracked welds, deteriorated concrete and past modifications all affect usable capacity.

Always rely on the structural engineer’s calculations and the applicable local standards. Crane suppliers can provide wheel load data, but the building’s capacity to carry that data is an engineering decision.

Check Clearances: Height, Span and Bay Layout

Existing buildings rarely offer perfect conditions, so geometry usually drives crane selection. Measure and record:

• Clear height: the distance from the finished floor to the lowest obstruction, such as roof trusses, ducts, lighting or sprinkler pipes. Remember that the hook needs headroom above the load, and the crane itself needs space above the runway rail.
• Span: the distance between runway centerlines, which is usually tied to column spacing.
• Bay length: how far the crane needs to travel along the building.
• Hook approach: how close the hook can get to the walls or end of the runway, which affects how much of the floor the crane can actually serve.
• Obstructions: mezzanines, new partition walls, services and openings that may interfere with the crane’s path.

If the numbers are tight, a standard crane may not fit. Fortunately, there are several ways to adapt.

Choosing the Right Crane Type for an Existing Building

There is no single best crane for every reuse project. The right choice depends on capacity, building geometry and how much load the structure can safely accept.

Single girder overhead cranes

For light to medium duty, a single girder overhead travelling crane is often the most practical choice in retrofit work. It is lighter than a double girder design, so it places lower loads on runway beams and columns. Typical ranges, such as 1 to 32 tons and spans of roughly 7.5 to 31.5 meters, cover many workshop and assembly applications.

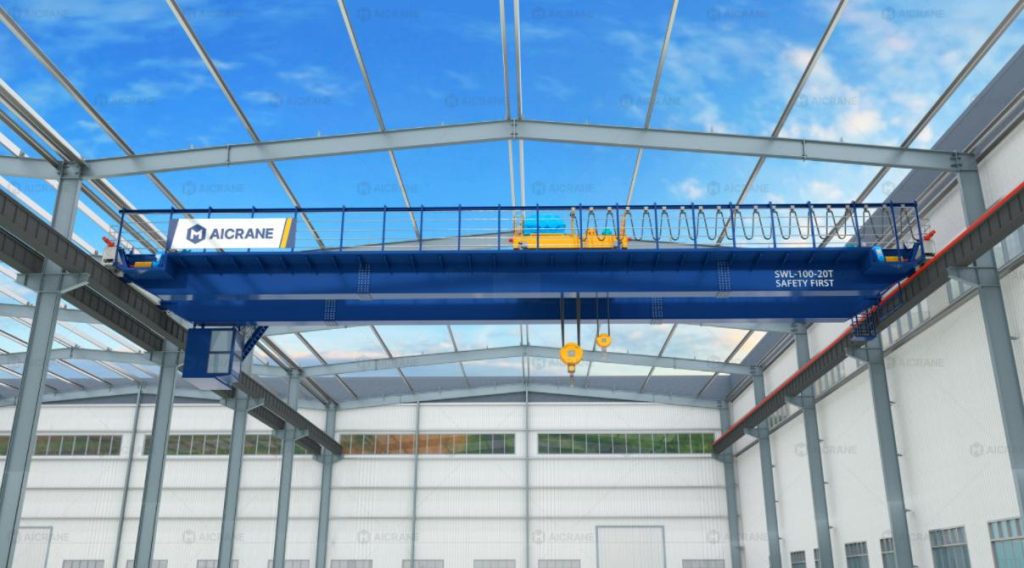

Double girder overhead cranes

Where higher capacities, longer spans or heavier duty cycles are required, a double girder overhead travelling crane offers greater lifting capability and more hook height. The trade-off is added weight and a taller crane profile, so the existing structure needs a careful check.

Underslung (under-hung) cranes

When headroom is limited or there are no existing crane columns, an underslung overhead travelling crane can be hung from the roof structure or a dedicated support frame. This avoids the need for separate runway columns, but it places direct load on the roof, which must be verified.

Free-standing crane structures

If the existing frame cannot carry additional load, an independent steel structure can be built inside the building to support the crane runway. The new frame carries the crane loads to new foundations, leaving the original columns and roof untouched. This approach is common where the original building is protected or structurally fragile.

A full overview of available options can be found in the overhead crane range, and each configuration can be customized for span, height and duty class.

Protecting Heritage Features and Existing Fabric

In many adaptive reuse projects, the building’s character is the reason the project exists. Brick walls, timber or steel trusses, clerestory windows and original columns may all be worth preserving, and sometimes they are protected by heritage rules.

Design strategies that help include:

• Independent supports: use free-standing steel frames rather than modifying historic columns.
• Reversible interventions: bolted connections and non-destructive fixings are easier to justify than cutting or welding into original members.
• Lighter crane designs: reduce loads so fewer structural modifications are needed.
• Visual integration: a crane painted to match the interior, or deliberately left as an industrial feature, can become part of the architecture rather than an intrusion.

Early discussion with heritage authorities, if applicable, saves time later. Approvals often depend on showing that the intervention is minimal and reversible.

Power, Controls and Safety Upgrades

A crane retrofit is not only about steel. Several supporting systems should be planned alongside it:

• Power supply: conductor bars or cable festoon systems need a suitable electrical supply and routing that fits the building.
• Control and drives: variable frequency drives give smoother starts and stops, reduce mechanical shock and lower stress on the structure, while radio remote controls let operators stay clear of the load.
• Limit and protection devices: overload limiters, travel limit switches and anti-collision systems should be specified as standard, particularly where the building will be shared with other users.
• Fire safety: crane paths and electrical routes must respect sprinkler coverage, smoke control and escape routes.
• Inspection and testing: a new or modified crane should be load tested and inspected before use, and covered by a regular maintenance schedule.

These items are easier and cheaper to integrate during design than to add after the building is occupied.

A Practical Retrofit Planning Checklist

Use this sequence to keep an adaptive reuse crane project on track:

1. Define the use: heaviest load, lift frequency, working area and future growth.
2. Survey the building: dimensions, clearances, existing runway beams, services and obstructions.
3. Commission a structural assessment: confirm what the frame, foundations and roof can carry.
4. Shortlist crane concepts: single girder, double girder, underslung or free-standing support.
5. Share building data with the crane supplier: span, height, rail level, wheel load limits and electrical supply.
6. Coordinate with other trades: lighting, ventilation, fire protection and new partitions.
7. Confirm approvals: building permits, heritage consent and crane-specific regulations.
8. Install, test and commission: load test, safety device checks and operator training.
9. Plan maintenance: inspection intervals, spare parts and record keeping.

Common Mistakes to Avoid

• Choosing the crane before checking the structure. The building defines what is possible.
• Ignoring duty class. A crane used occasionally and one used all day place very different fatigue demands on the structure.
• Overlooking headroom. A crane that technically fits but leaves no usable hook height has little value.
• Forgetting future change. If production may grow, leave some margin in capacity and layout.
• Treating the crane as an afterthought. Late additions often mean costly structural fixes.

Frequently Asked Questions

Can an overhead crane be installed in an old industrial building?

Yes, in many cases. The feasibility depends on the building’s structural condition, available clearances and the crane’s capacity. A structural assessment is essential, and solutions such as lightweight single girder cranes or independent support frames often make installation possible.

Can I reuse an existing crane runway?

Sometimes. An existing runway can be reused if inspection and calculation confirm it can carry the new crane’s loads and fatigue demands. Worn rails, damaged connections or undersized beams may need repair or replacement.

What is the best crane type when headroom is limited?

An underslung crane or a low-headroom single girder crane is often the best fit, because it makes better use of limited vertical space. Roof capacity must be checked before choosing an underslung system.

Do I need a separate structure for the crane?

Only if the existing building cannot safely carry the additional loads. A free-standing steel frame is a common solution because it avoids modifying the original structure.

Who should be involved in the project?

The project team should include the building owner, architect, structural engineer, crane supplier and, where relevant, heritage and safety authorities. Early collaboration reduces redesign and delay.

Conclusion

Adaptive reuse gives industrial buildings a second life, and a properly planned overhead crane can be what keeps that second life productive. The key is to treat the crane as part of the building’s design: assess the structure first, respect clearances and heritage features, choose a crane type that suits the geometry, and plan power, controls and safety from the start.
