Baan SudSaenSuk is a private residence located in Chiang Saen District, Chiang Rai Province, an area distinguished by its rich artistic heritage, vernacular architecture, urban landscape, and historic significance as an important ancient city of the Lanna Kingdom. These layered qualities make Chiang Saen one of the places that most clearly reflect Lanna identity. The design concept of the house emerges from an interpretation of this local context, translating it into both material selection and architectural language that resonate with contemporary ways of living.

A Private Residence In Thailand Translates Into The Local Architecture Context | BodinChapa Architects

An Extensive Case Study

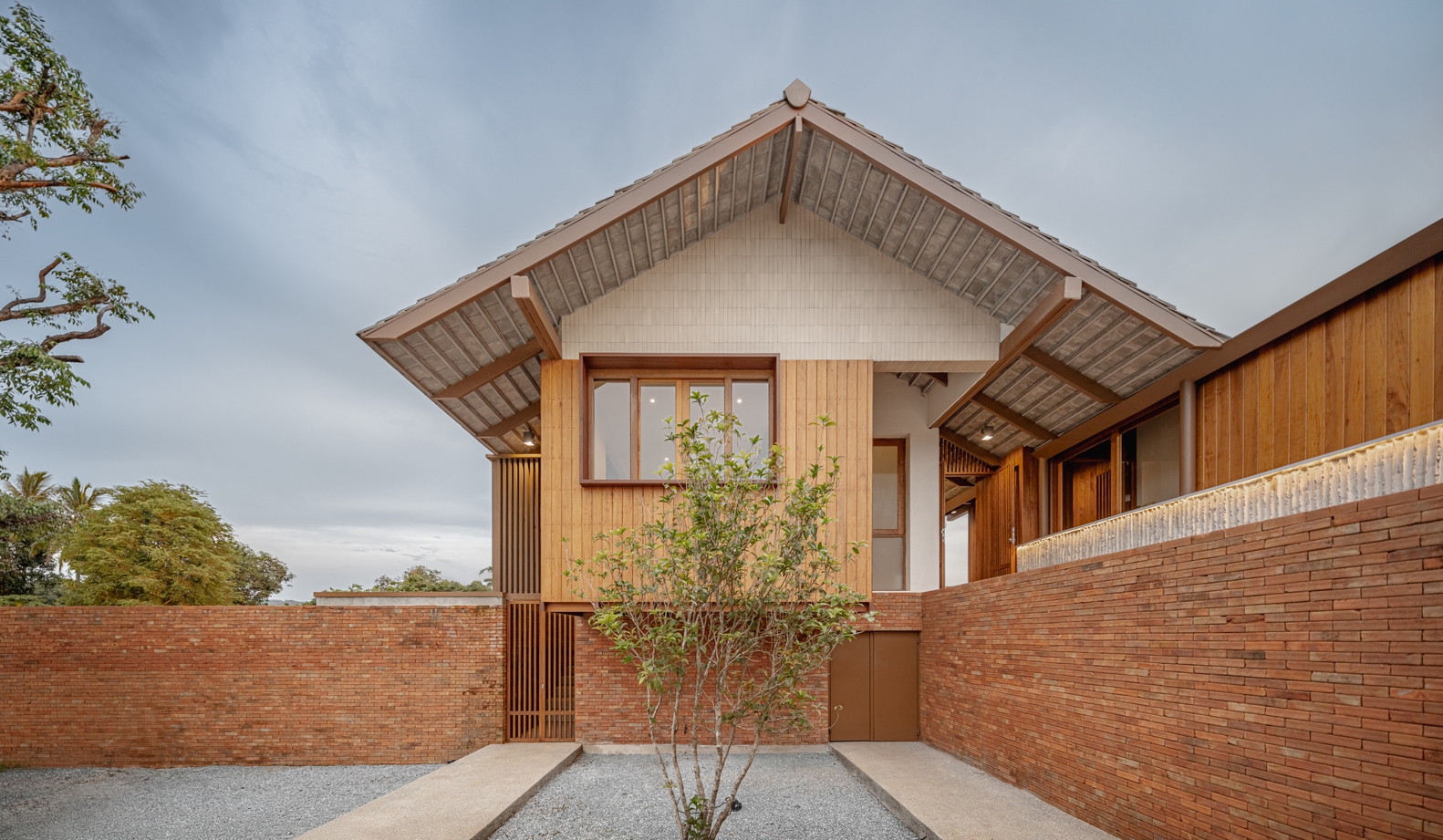

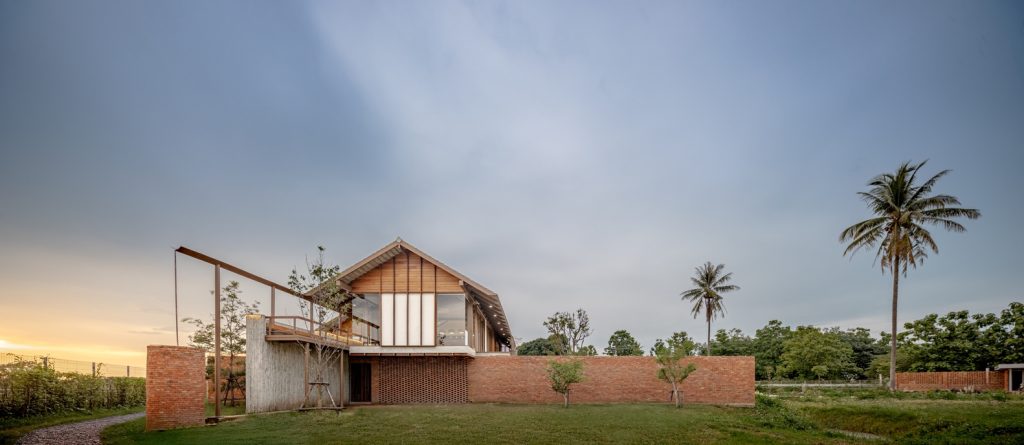

The designers conducted extensive studies of various forms of Lanna vernacular houses and reinterpreted their principles through a contemporary lens. Among these, the Ka Lae house, a distinctive traditional dwelling, became a key reference. The site is located near the Mekong River, separated by a public village walkway, requiring the design to carefully balance visual connection to the riverside landscape with appropriate levels of privacy. As a response, the private residence is oriented along the north–south axis, a configuration commonly referred to as “placing the house across the sun path,” characteristic of the Ka Lae typology. This orientation positions the gable end toward the south, framing views of the Mekong River and the surrounding mountain range.

The Layout

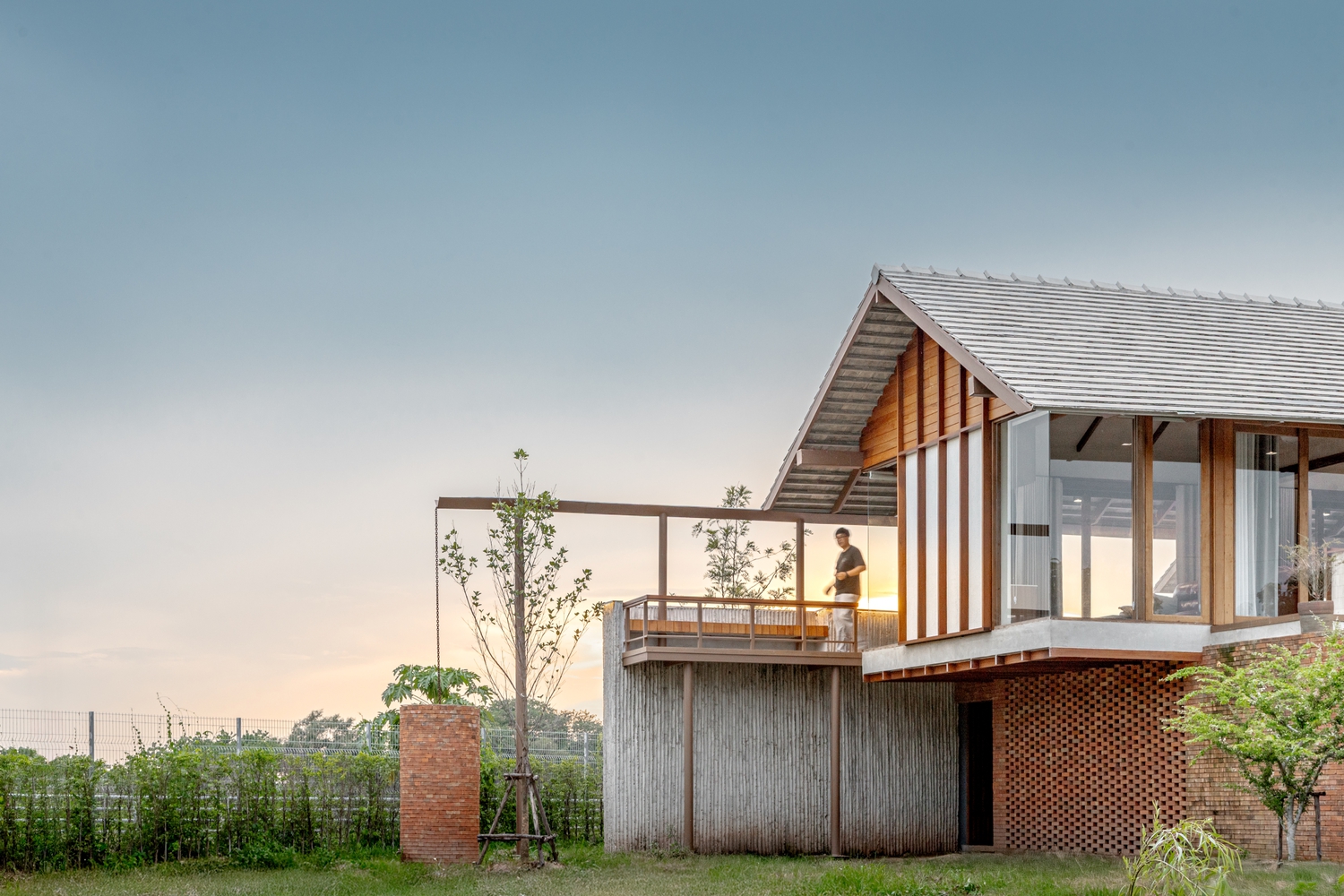

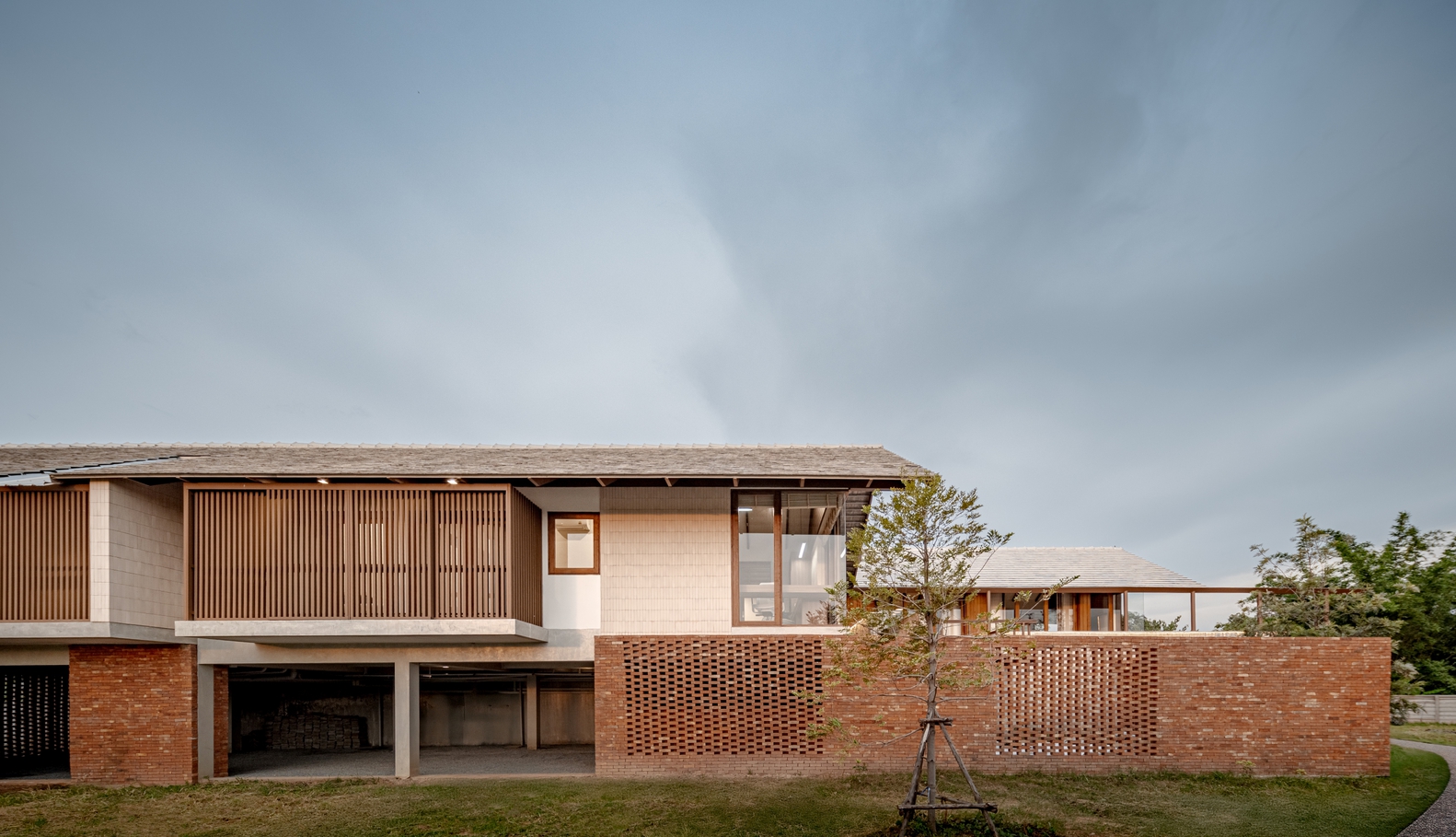

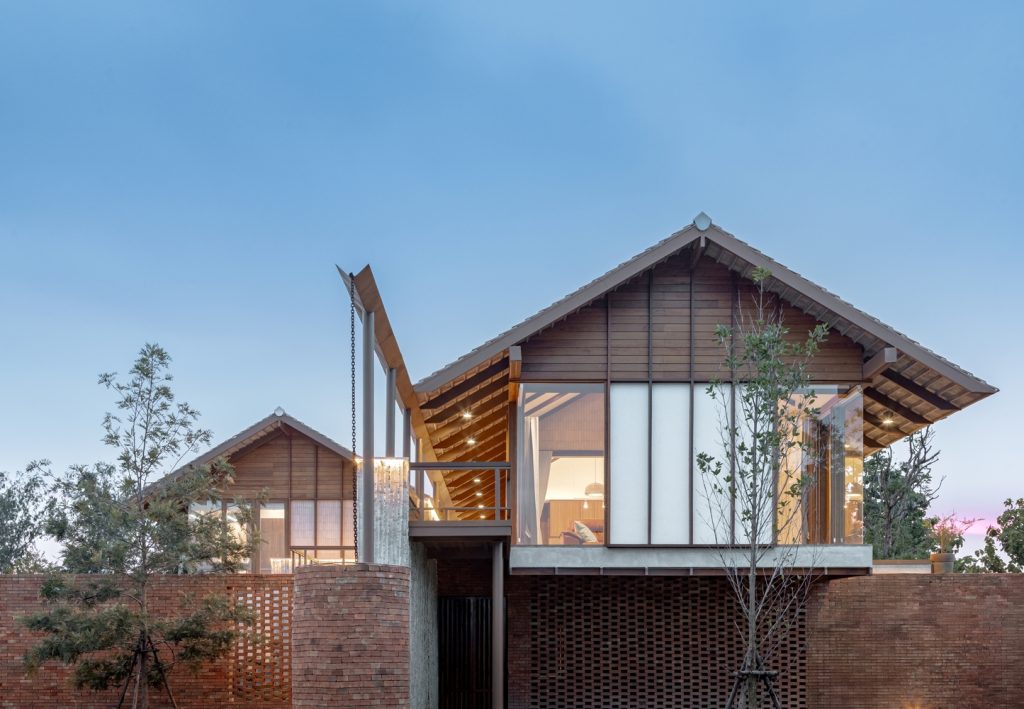

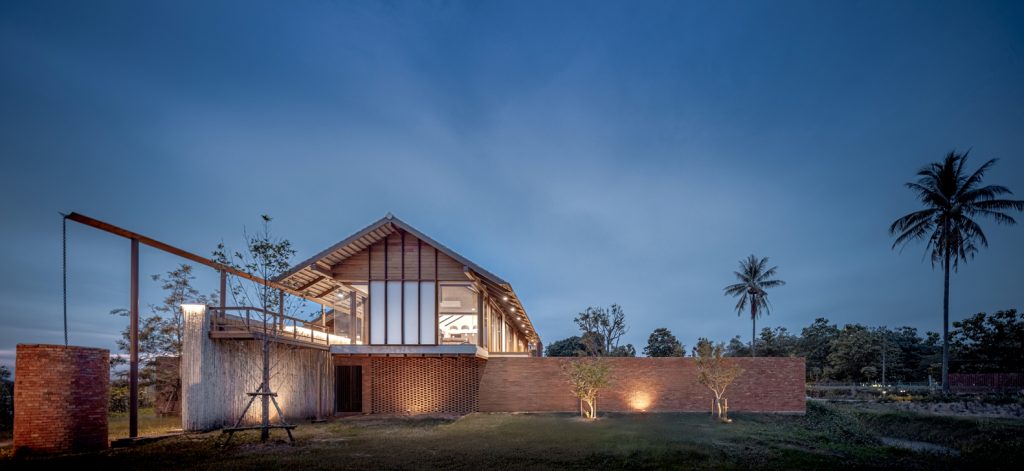

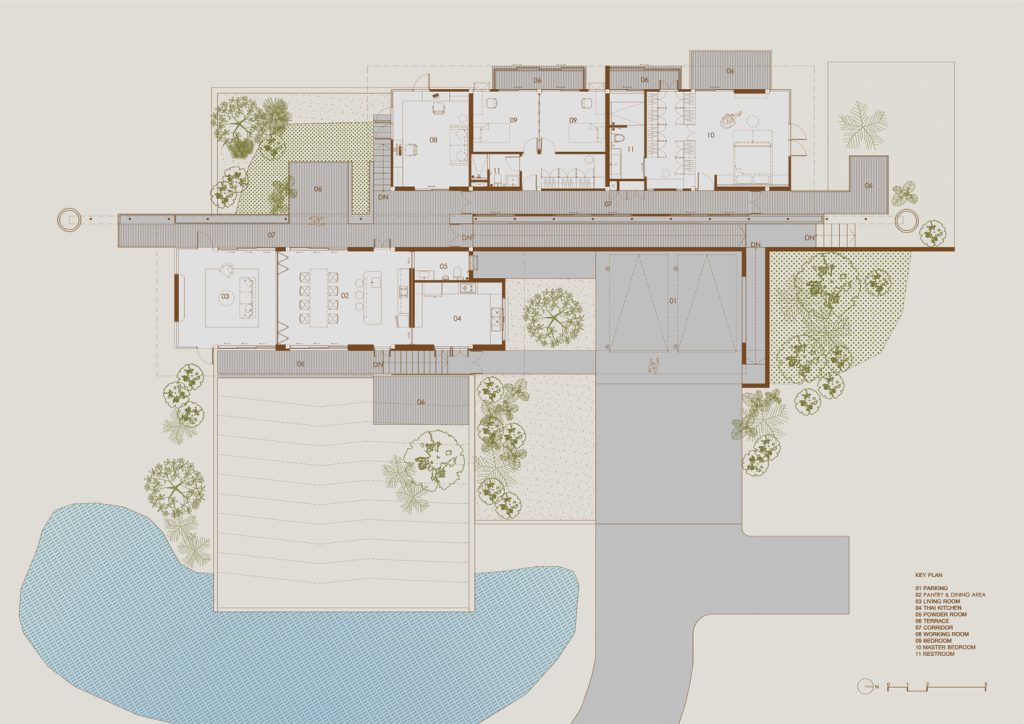

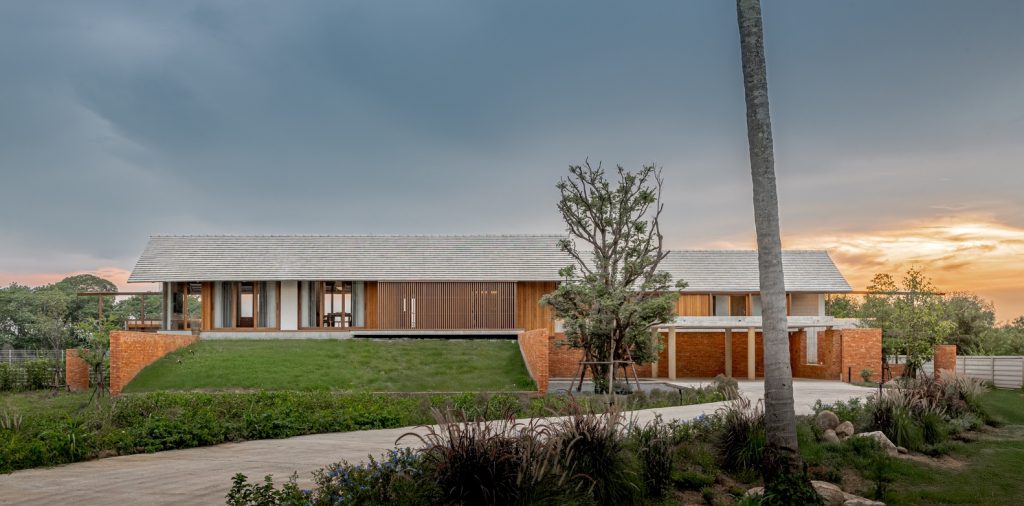

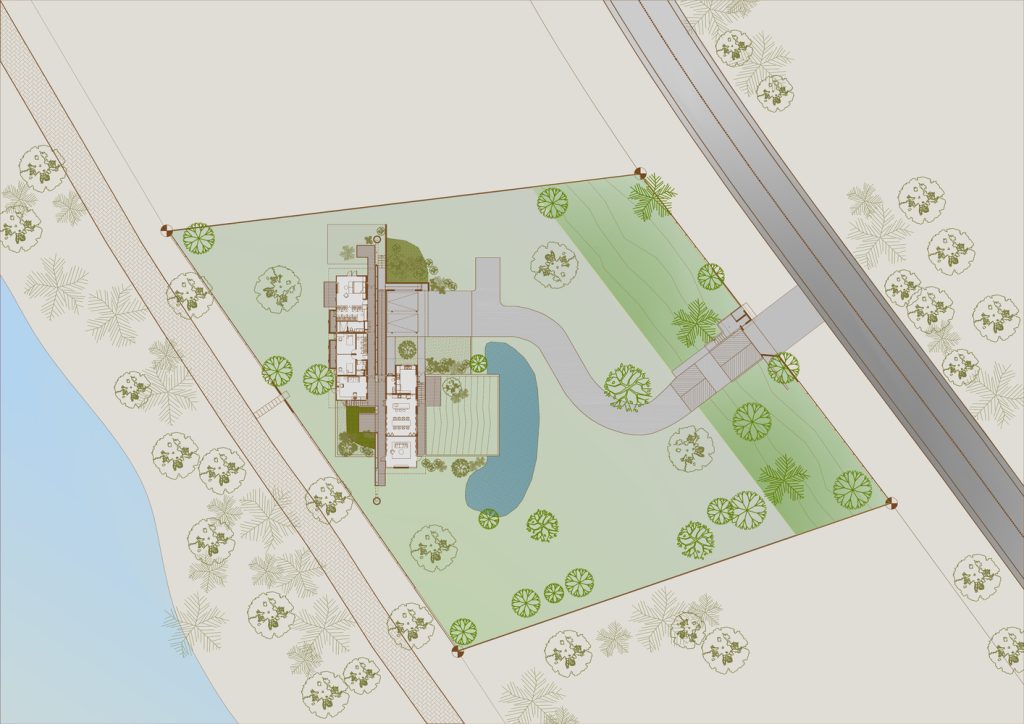

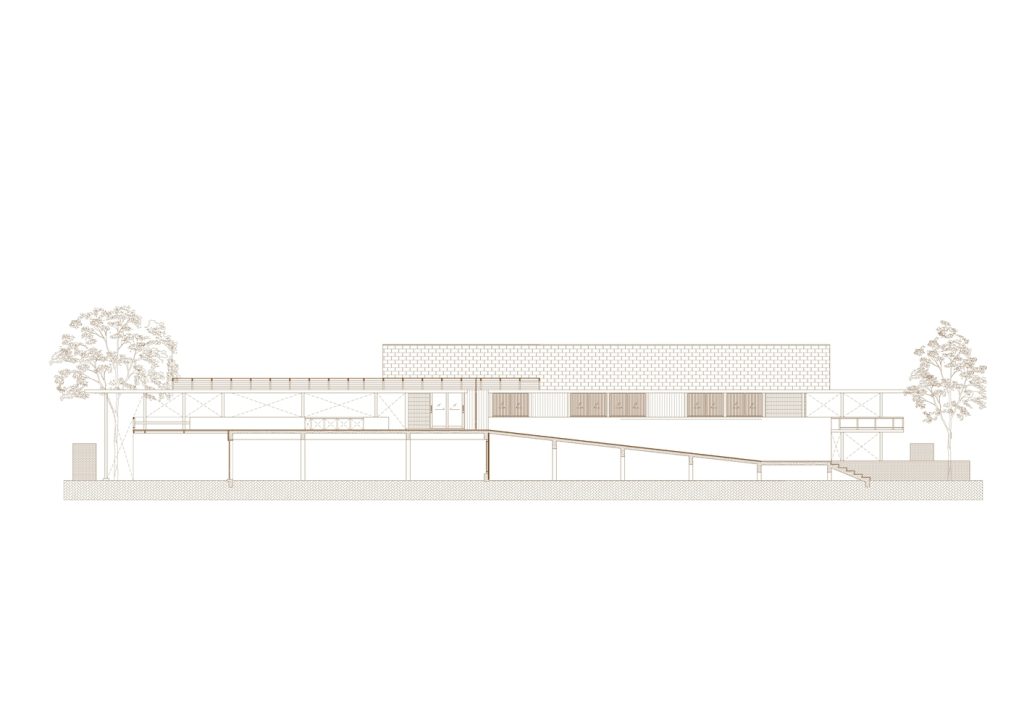

The building axis is further rotated at a 45-degree angle relative to the site boundary, preventing the long elevation of the house from running parallel to the public walkway. This creates a sufficient spatial buffer for landscape elements to filter views and enhance privacy. The architects elevated the house above the ground, forming a space reminiscent of a traditional underfloor area. This elevation improves ventilation, enhances visual perspectives, and provides space for building systems and additional functional uses. The architects adapted the concept of the “twin-house” by separating the sleeping quarters from the kitchen and service areas, clearly distinguishing private zones from more active communal spaces. They connected the twin gables by a continuous rainwater gutter that channels natural rainfall into brick water reservoirs located to the north and south of the house, allowing water to be reused for gardening.

Transitional Spaces

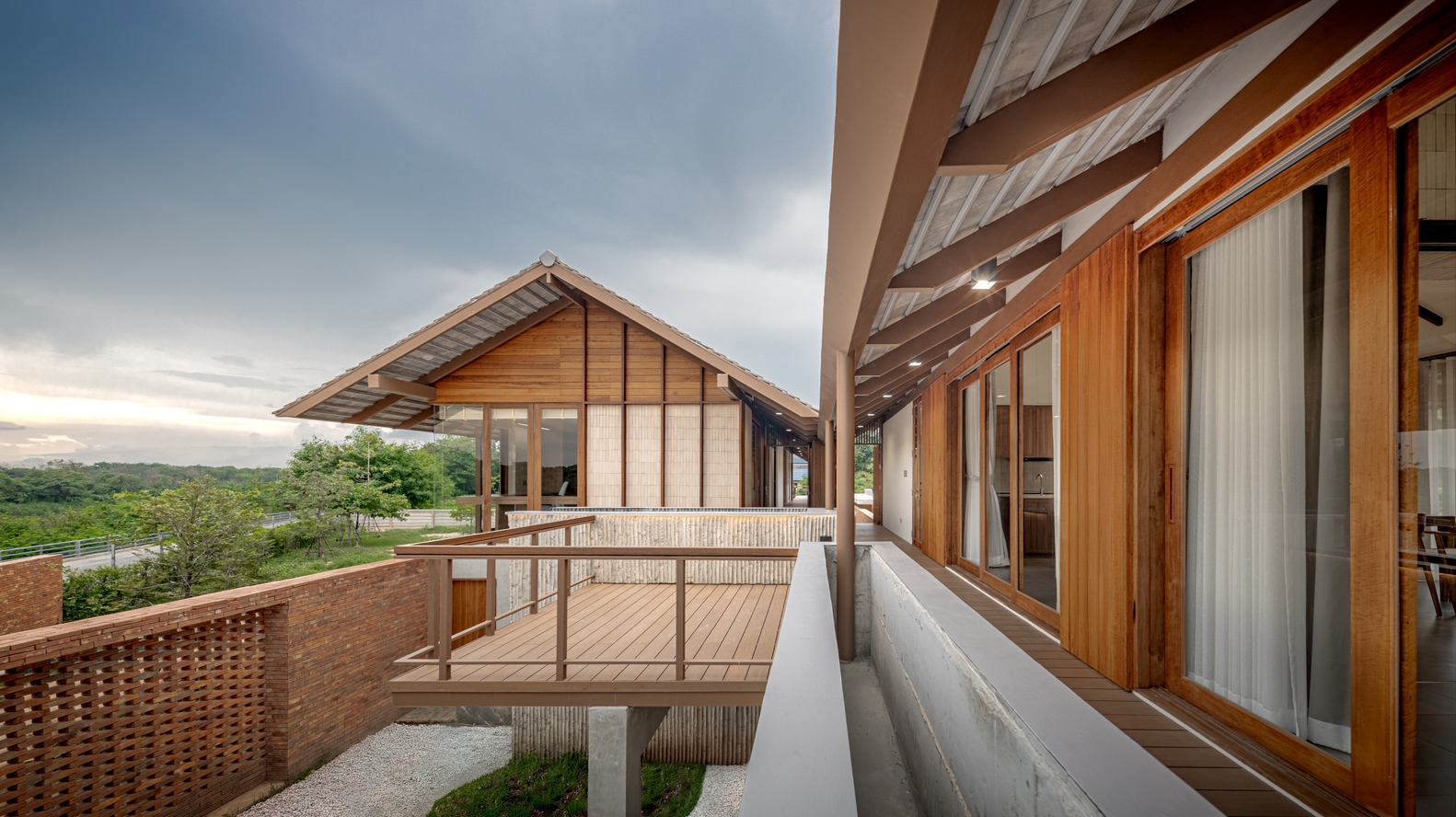

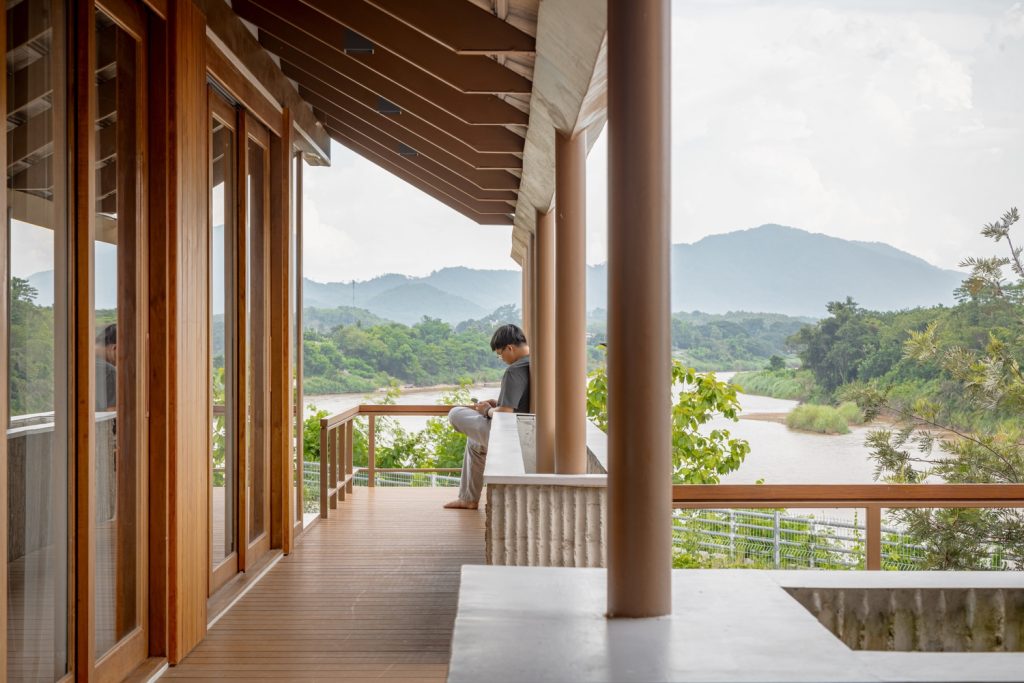

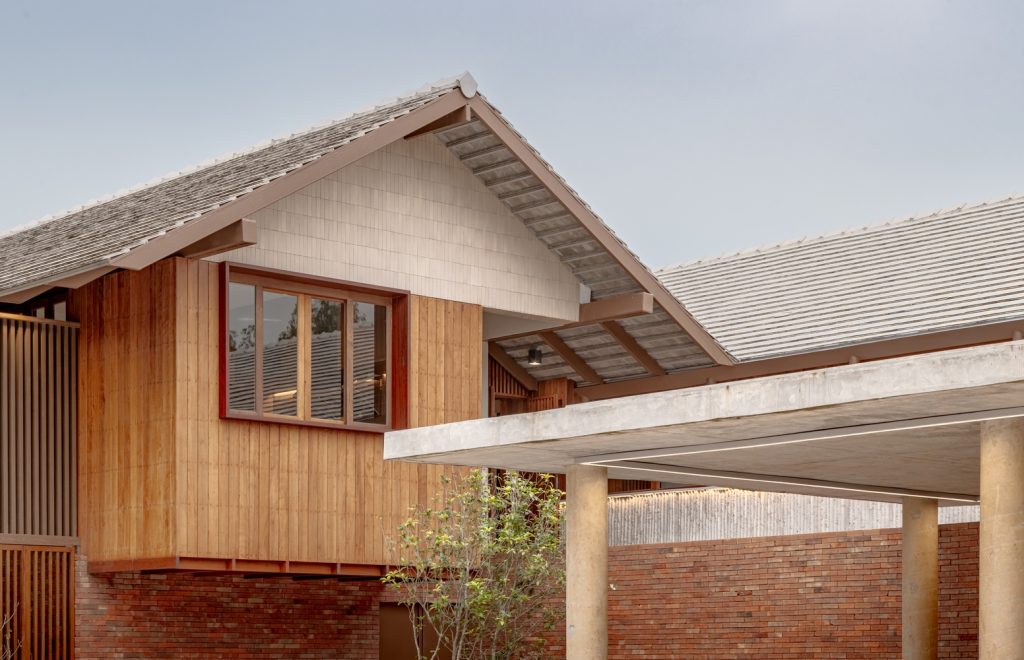

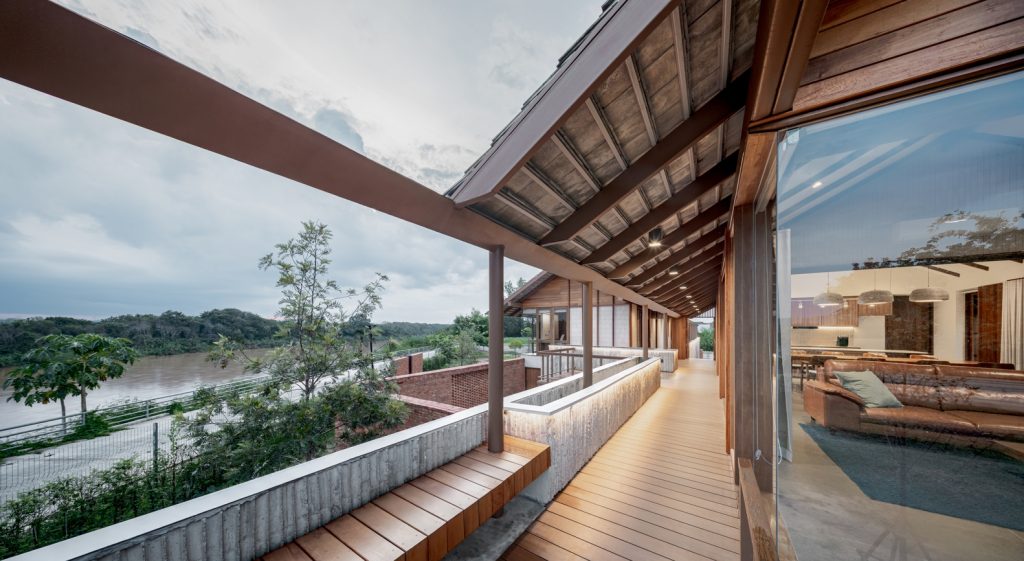

The architects included a defining feature of Baan SudSaenSuk, which is the traditional transitional spaces known as the “Chan (ชาน)” and “Tern (เติ๋น)”. These spaces function as circulation and connective elements between the sleeping house and the kitchen house. The chan takes the form of outdoor terraces extending to the north, south, and central areas of the private residence, while the tern serves as a semi-open transitional space at the heart of the dwelling. Together, these elements enhance natural ventilation and reduce heat gain within the interior spaces. Along the building perimeter, the architects reinterpreted the distinctive “fa lai” (sliding wooden panels) as façade elements, providing visual filtering and additional layers of privacy.

Brick & Concrete

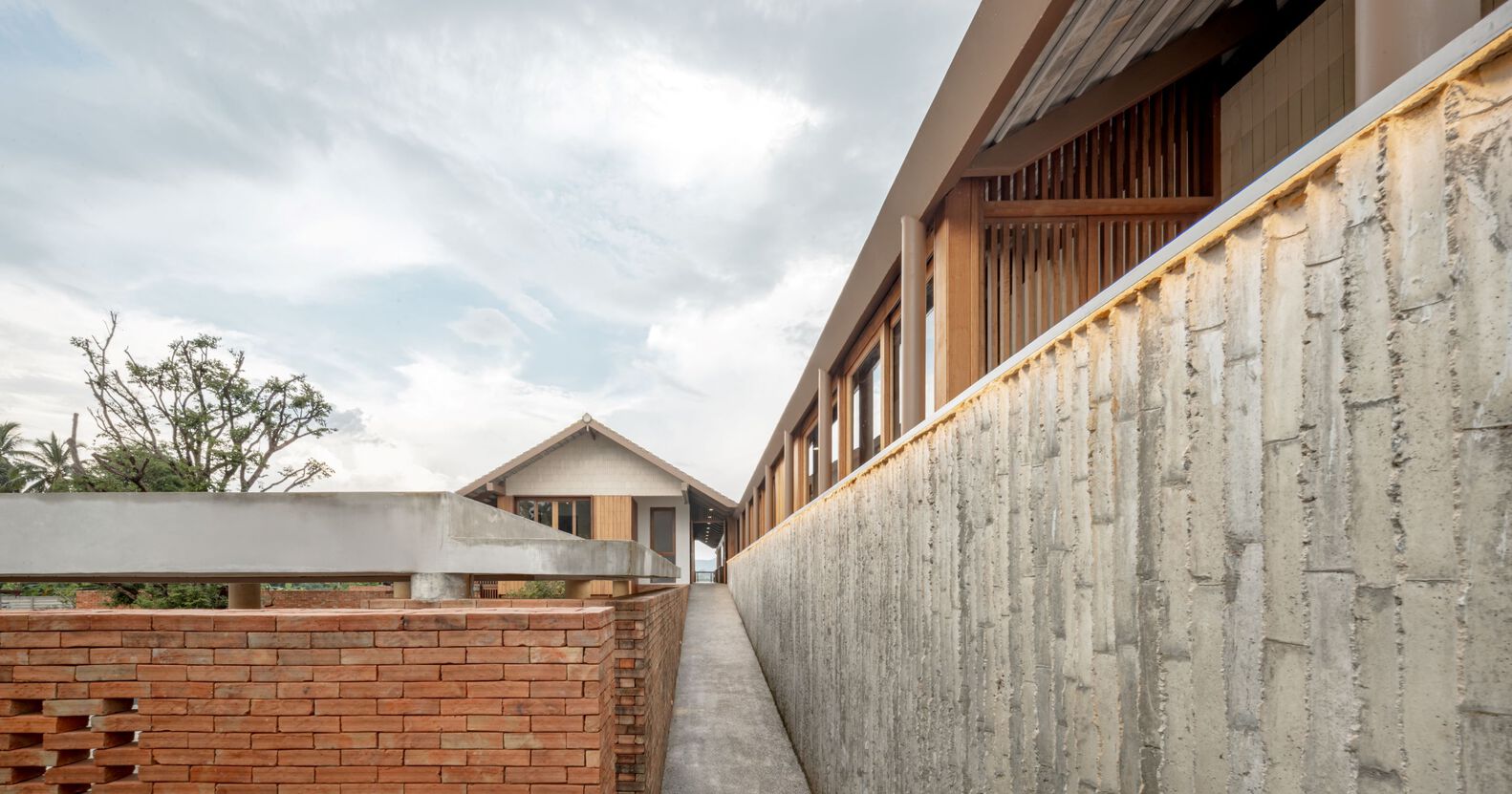

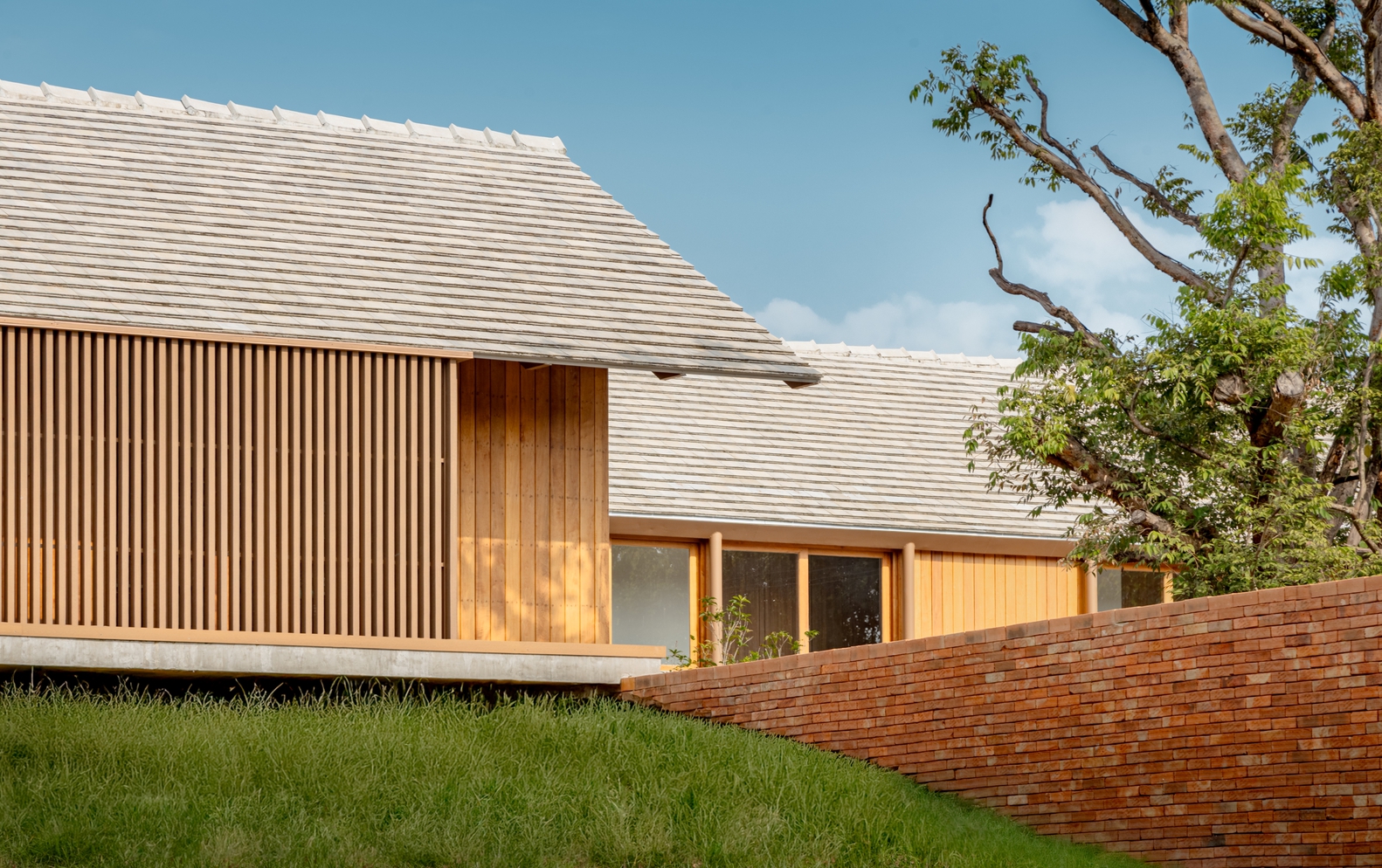

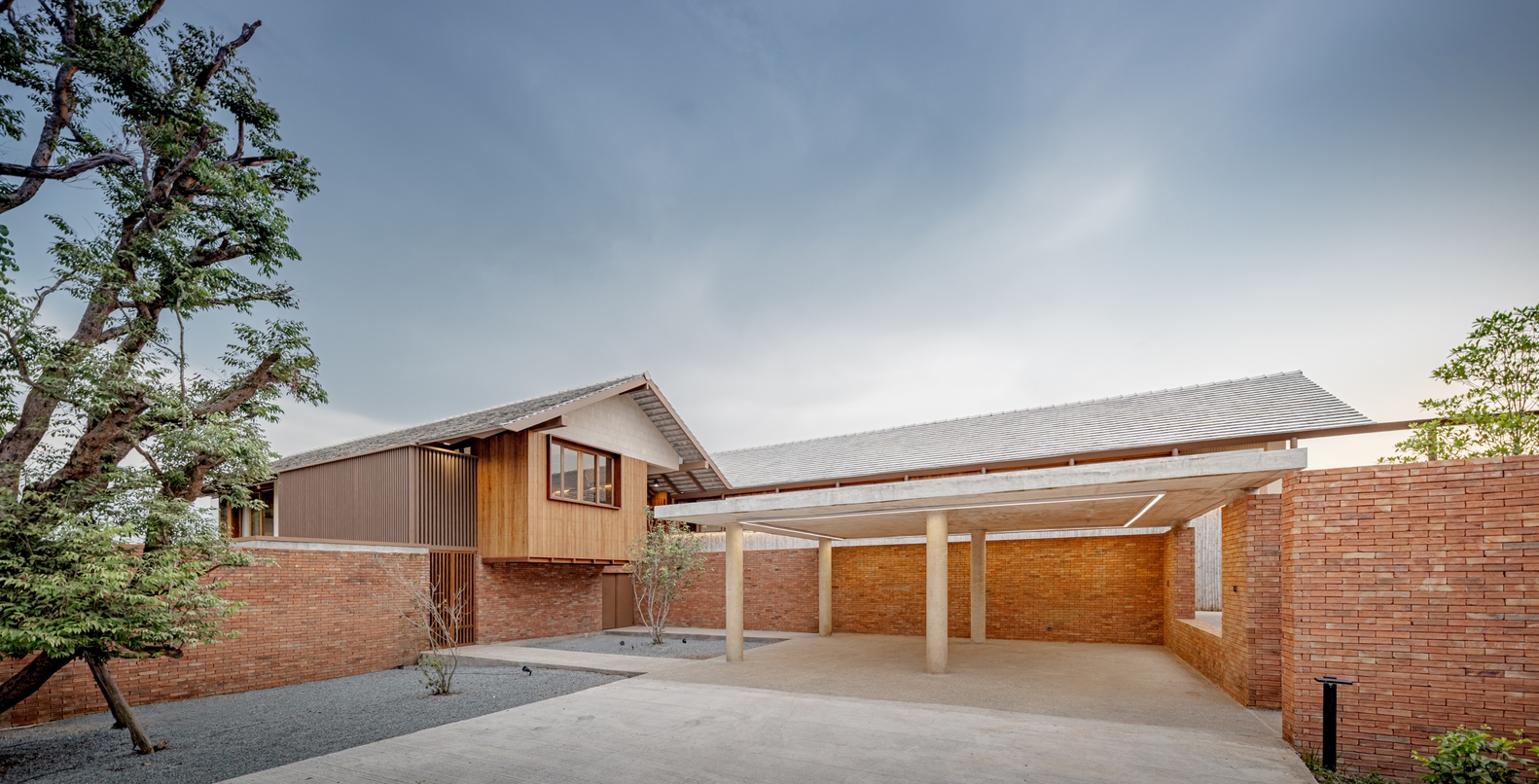

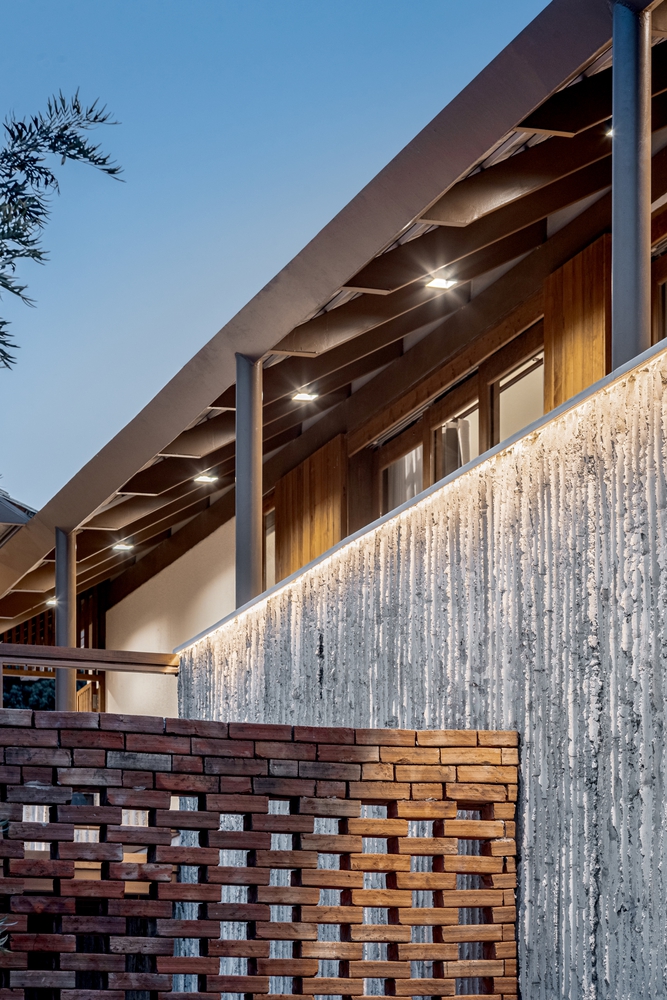

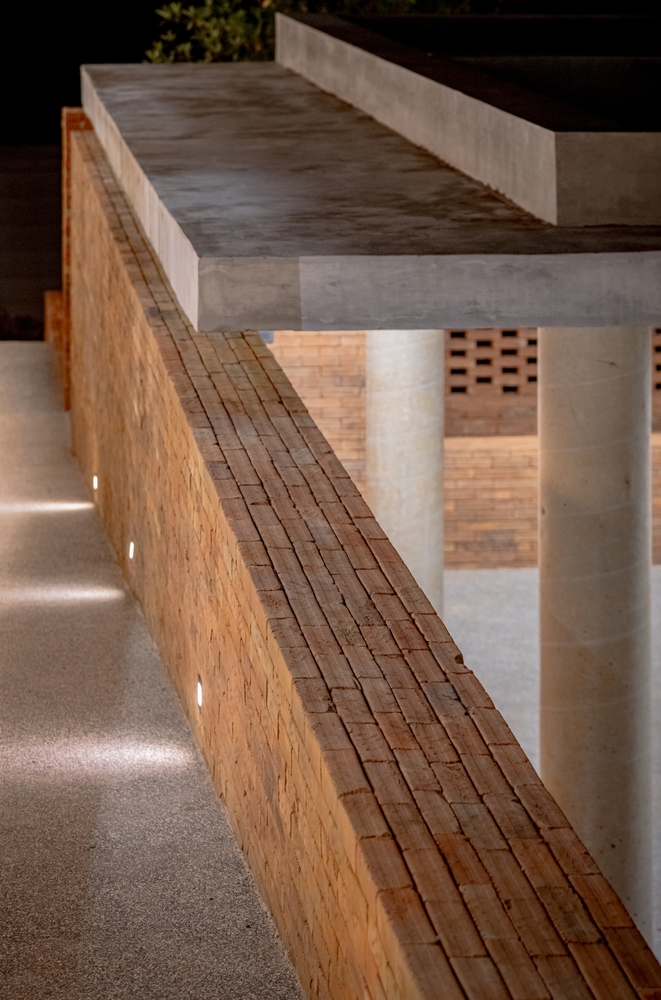

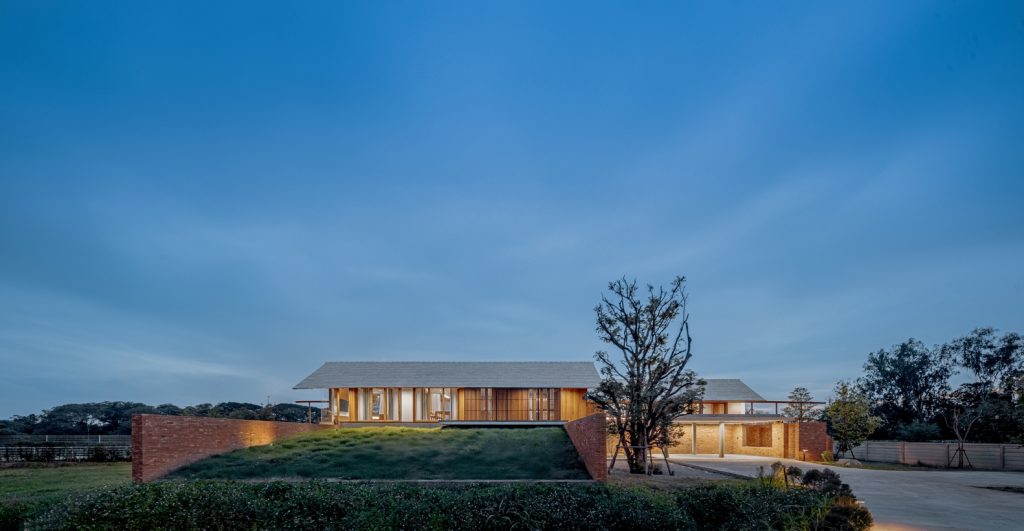

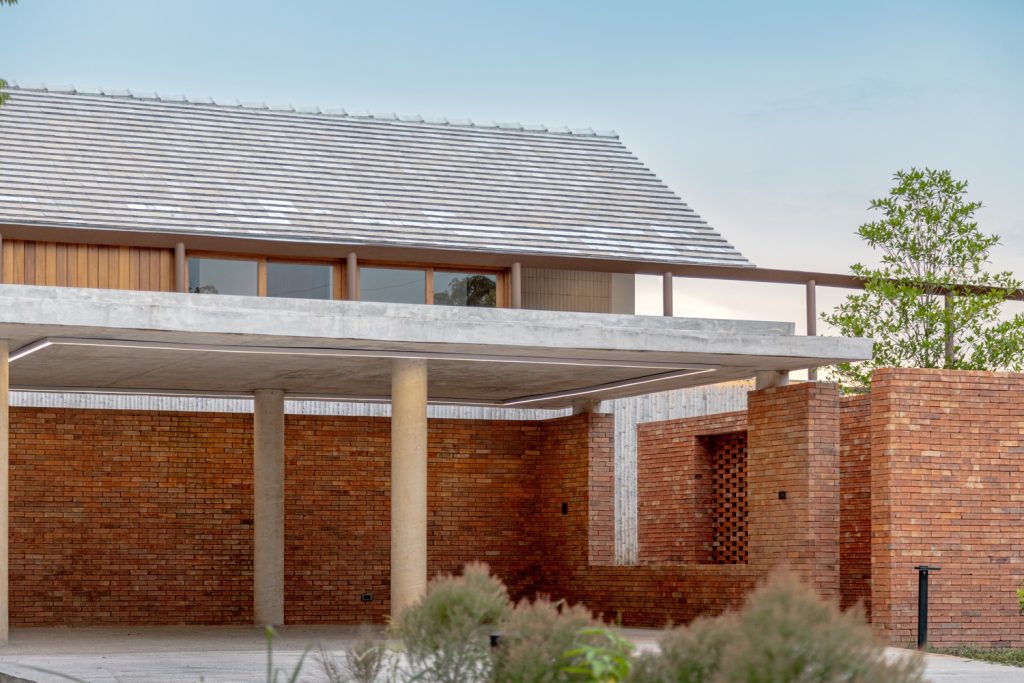

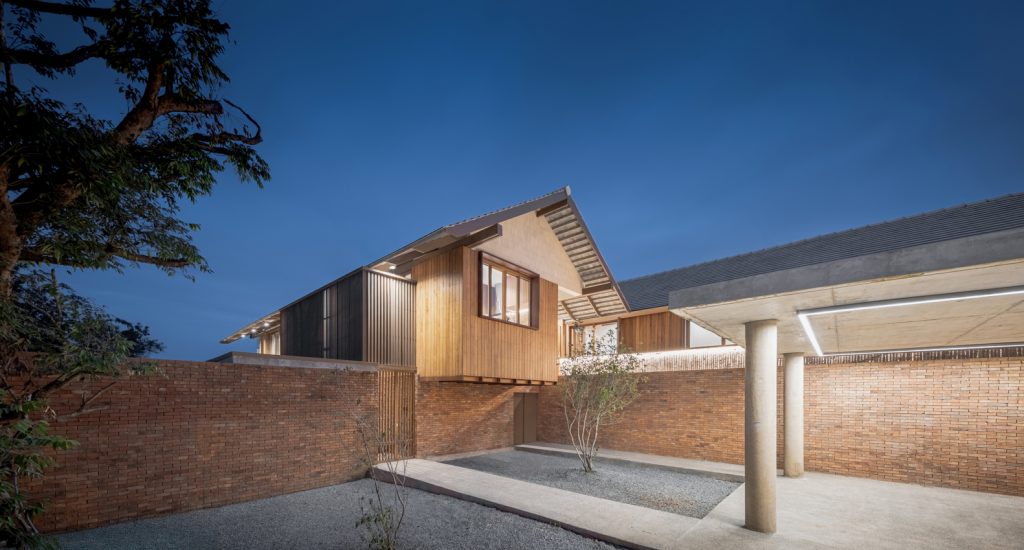

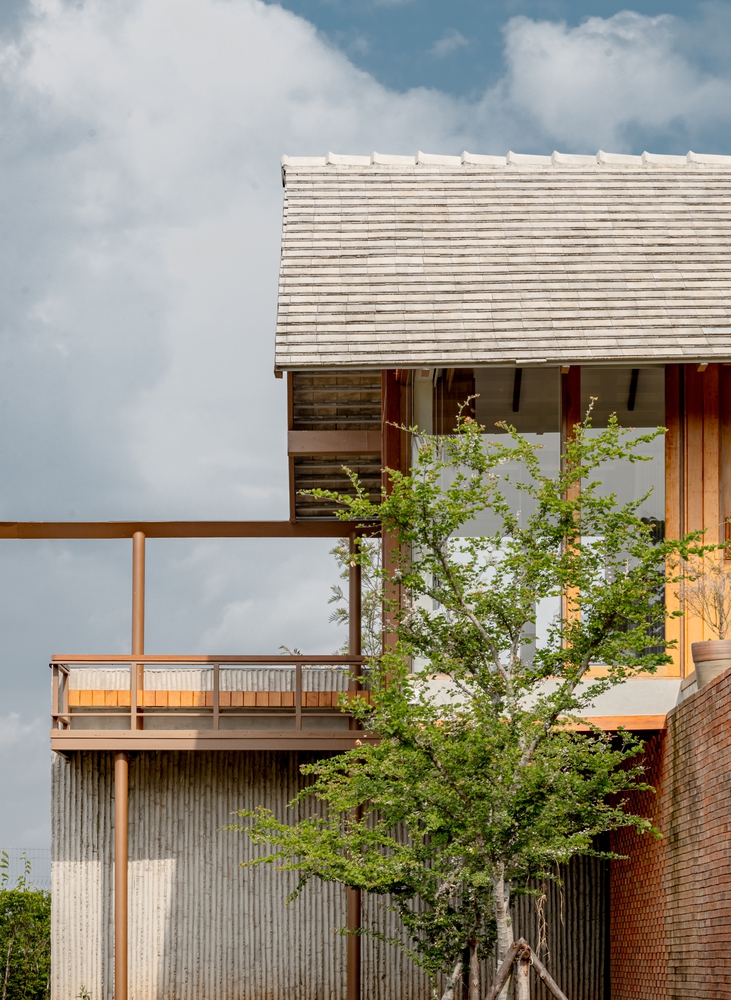

The architects articulated the architectural lines of the house through the use of brick and cast-in-place concrete walls. They textured it with bamboo formwork. Brick wall planes and earthen mounds form another key characteristic of the house. They draw the surrounding greenery closer to the living spaces while visually grounding the building to the earth. These elements also help mediate the perceived height of the house, establish spatial boundaries, and organise an internal courtyard. Together with the bamboo-textured concrete walls, they unify the architectural components into a cohesive whole.

Traditional Wisdom

Baan SudSaenSuk reflects a thoughtful reinterpretation of traditional wisdom. Here, humans shape their environments in harmony with the Lanna way of life. They weave this into an architectural form that remains relevant in the present day. While the house stands with a dignified presence, it is fundamentally rooted in a deep respect for its cultural, environmental, and urban context. It embodies a contemporary architecture that grows meaningfully from local heritage.

Fact File

Designed by: BodinChapa Architects

Project Type: Residential Architecture Design

Project Name: Baan SudSaenSuk

Location: Chiang Rai, Thailand

Year Built:  2025

Built-up Area: 6996 Sq.ft

Principal Architects: Phitchapa Lothong, Bodin Mueanglue

Photograph Courtesy: Witsawarut Kekina

Manufacturers:  L-Thai, watsadu niyom

General Contractor: Blackbean Construction

Source: Archdaily
